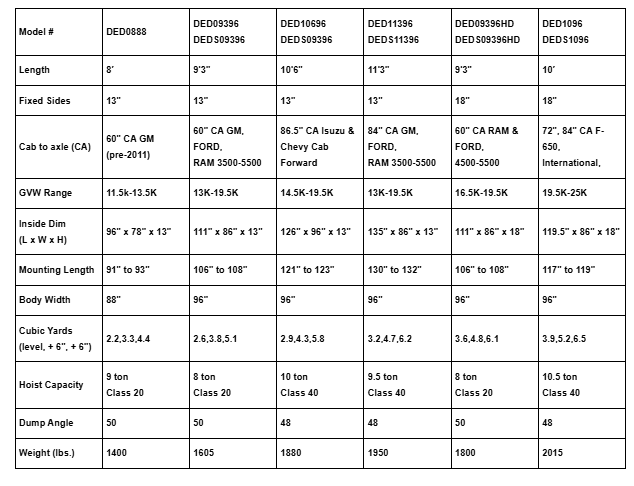

Downeaster - Model SCISSOR Class 3-6 -Hoist Dump Bodies
10 gauge construction throughout. Dirt shedding , sloped design at side plate and tailgate top. Double panel side plates equal over 1/4" thickness. Full depth 3/16"rear corner pillars incorporate recessed lighting, keyhole banjo eyes and lower tailgate pin receiver. All lighting is LED rubber mounted and NTEA and Federal compliant. 2 1/2" shorter deck height (9′ only). Mounting height of 9.5" chassis to floor (9′ only). 10" board extension pockets ease of install & future optional / custom overhang. Self aligning rear latch release for the top gate pins. Integrated tarp hooks. Our products come acid etched, phosphate washed, with corrosion resistant epoxy primer and then baked for a strong superior finish.
FLOOR & UNDERSTRUCTURE
- 4" x 5.7# Channel long sills and 3" channel cross members (9′)
- 6" x 8.2# Channel long sills (10′, 10.5′ 11′)
- 3/16" Stainless formed 7" long sills (SS body)
- 3" stainless tubing, interlaced cross members (SS body)
- Two piece 10 gauge floor with 45 degree slopped corners where meets seamless side plate.
- Greasable Bronze bearings for underbody release mechanisms
TAILGATE
- Formed 10 gauge inner, outer and end panels.
- 1" hardened pins, (1" Stainless) with plasma cut latch receiving lock fingers
- Adjustable 1/4" chain for spreading aggregate material & holding gate in down position
CAB SHIELD
- Bolt on, 10GA (12GA SS) cab protector / overhang, for ease of install & future optional / custom overhang
- 12" (1/4 cab) overhang, standard. (8′, 9′, & 11′)
- Pre punched tarp mounting provisions.
- Slotted dual windows
- Stainless body construction (excluding DED0888)
- 24" Cab Shield (1/2 cab)
- Tarp assembly, manual or spring loaded.
- 3/16" floor (on 9′ & 10′ only)
- Coal chute, installed, painted or stainless
- Backup, running or strobe lights in apron
