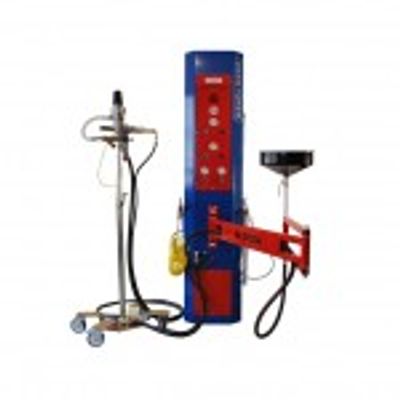

SEDA - Drain Tower
The SEDA Drain Tower was developed for the recycler whom needs to service multiple bays with a single system and has a limited amount of work space available. The Drain Tower was the first and is the only vertical evacuation system on the market today. Like all of SEDA’s systems it is easily customizable with a variety of equipment options.
Most popular related searches
- Vertical footprint allows for positioning in the most cramped spaces
- Can service multiple bays at one time
- Can be easily converted into a double Drain Tower for large processing needs
- Operates solely with the supply of compressed air
- All evacuation uses suction, no relying on gravity
- Evacuates all contaminants from ELV’s
- Compressed air requirements – 120 PSI @ 30 CFM
- Drainage times – 6 minute/vehicle
- Gas/diesel evacuation – 10 Liter/minute
- Waste oil/coolant – 3 Liter/minute
- Screen wash fluid – 5 Liter/minute
- Packaging dimensions -2300 x 1200 x 1200 mm (single)
- Packaging weight – 600 kg (double) / 330 kg (single)
