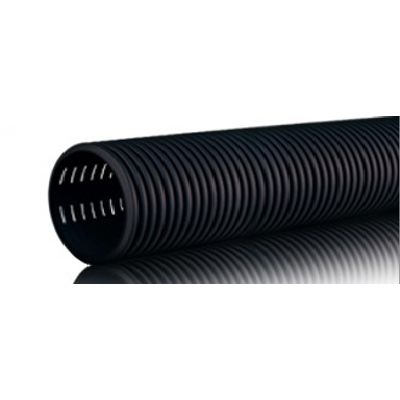

WPS – Agrosil - Model 2500 -Drainage Pipe
Material: PE-HD (Polyethylen of high density). Ring stiffness: SN4 (SN8 on inquiry). Receivable in nominal diameters DN100, 150, 200, 250, 300, 350, 400 and 500. In accordance with DIN 4262-1, type R2. Colour: black. Cellular design - smooth on inside, corrugated on outside. With a factory-fitted double socket. Pipe length (without joint): 6 m.
Most popular related searches
4 different perforation types receivable:
TP - totally perforated
- 360° slotted, perforation width 0.8 to 1.4 mm,
- minimum water inlet surface: 50 cm²/m
LP - locally perforated
- 220° slotted, perforation width 0.8 to 1.4 mm,
- minimum water inlet surface: 50 cm²/m
MP - multi perforated
- 120° slotted, perforation width 0.8 to 1.4 mm,
- minimum water inlet surface: 50 cm²/m, incl. 2 sealing rings
UP - unperforated multifunctional pipe
- incl. 2 sealing rings
Complete fitting range receivable!
Our Agrosil-pipe will also convince you!
- Underground drainage in traffic route and civil engineering
