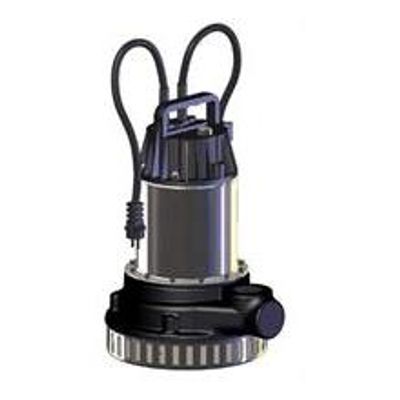

Soggia - Model SVD -Drainage Pump for Dirty Water
FromSoggia Srl
Submersible water pumps to drain waste water with double chamber and pump body in cast iron. Can get maximum flow of 400 l/min with maximum head of 19,5 meters. Those pumps are suitable to empy cellars, basements and tanks in domestically and industrial application. All SVD pumps are supplied with float switch in the single-phase version.
Most popular related searches
submersible water pump
water pump
float switch
submersible pump
sewage water
domestic sewage
sewage collection
water suspended solids
drainage pumping
drainage pump
- Capacity till 400 l/min (24 m3/h )
- Head meters till 19,5 meters
- Rotation speed 2800 r.p.m.
- Maximum immersion depth: 5 meters
- Bypass section: 8 mm
- Temperature: 25°C partially immersed - 50°C totally immersed
- Emptying was settling, blacks wells and sewage collection
- Pumpggio waste water with suspended solids
- Handling domestic sewage and industrial
- Emptying sewage water
- Outer casing, base and cover steel INOX AISI 304
- Impeller in steel INOX AISI 304 (in cast iron per Model SVD140)
- Shaft INOX AISI 316
- Pump body in cast iron
- Mech. Seal Pump side in silicon-ceramic carbur , Motor side sealing ring in NBR, O-ring in NBR
- Cable: 10 meters in H07RN-F and float switch (singlephase)
- 2 pole electric induction in oil bath for continuous operations
- Sealing ring Motor side
- Protection class IP 68
- Class of insulation F
- Single-phase motor at 220-277 V - 50 Hz; Built in motor protector to prevent damage in the event of overheating and capacitor
- Three-phase motor at 380-480 V - 50Hz; protection must be provided by user
