Nophadrain - Model ND 100 / ND 120 -Drainage System
FromNophadrain BV

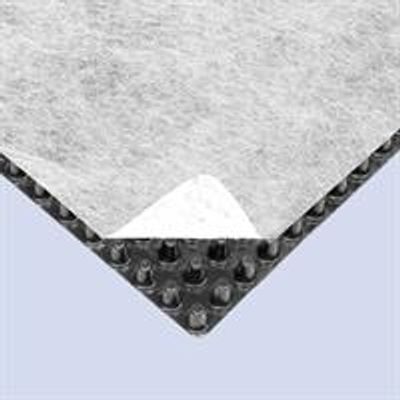

High-quality, CE-marked drainage system for extensive roof vegetation on medium pitched roofs. The ND Drainage System prevents the build-up of hydrostatic pressure on the waterproofing membrane and protects it against mechanical loads. The ND 120 Drainage System with a pressure-distributing protective sheet was specially developed for the Nophadrain "Clic" Sub-Structure Drainage and Protection System.
Most popular related searches
drainage system
green roof system
drainage capacity
waterproofing membrane
green roof
geotextile filter
drainage layer
drainage structure
polystyrene recycling
polypropylene filter
- Dimensions approx. 32 m x 1,25 m approx. 32 m x 1,25 m
- Packaging approx. 40 m², roll approx. 40 m², roll
- Weight approx. 653 g/m² approx. 695 g/m²
- Construction height approx. 8 mm approx. 8 mm
- Compressive strenght approx. 500 kPa approx. 500 kPa
- Material dimpled sheet recycled, high impact polystyrene (HIPS) recycled, high impact polystyrene (HIPS)
- Material geotextile filter polypropylene (PP) and propyethylene (PE) polypropylene (PP) and propyethylene (PE)
- Material pressure dividing slip film - polypropylene (PP)
- Drainage capacity i = 10 (20 kPa) 2.97 l/(s.m) 2.97 l/(s.m)
- Drainage capacity 2 % fall (20 kPa) 0.36 l/(s.m) 0.36 l/(s.m)
- CE hEN 13252 hEN 13252
- Nophadrain Extensive Green Roof System – steep pitched roof (ND 100)
- ND `Clic` Sub-Structure Drainage and Protection System (ND 120)
