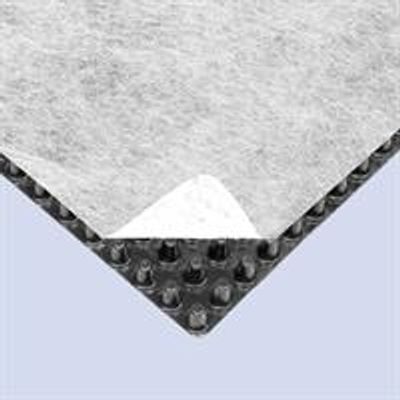

Nophadrain - Model ND 200 / ND 220 -Drainage System
FromNophadrain BV
High-quality, CE-marked drainage system for podium decks with sufficient fall. The ND Drainage System prevents the build-up of hydrostatic pressure on the waterproofing membrane and protects it against mechanical loads.
Most popular related searches
drainage system
green roof system
drainage capacity
waterproofing membrane
green roof
geotextile filter
drainage layer
polystyrene recycling
polypropylene filter
waterproofing
- Dimensions approx. 32 m x 1,25 m approx. 32 m x 1,25 m
- Packaging approx. 40 m², roll approx. 40 m², roll
- Weight approx. 908 g/m² approx. 949 g/m²
- Construction height approx. 12.5 mm approx. 12.5 mm
- Compressive strenght approx. 700 kPa approx. 700 kPa
- Material dimpled sheet recycled, high impact polystyrene (HIPS) recycled, high impact polystyrene (HIPS)
- Material geotextile filter polypropylene (PP) and propyethylene (PE) polypropylene (PP) and propyethylene (PE)
- Material pressure dividing slip film - polypropylene (PP)
- Drainage capacity i = 1 (20 kPa) 5.29 l/(s.m) 5.29 l/(s.m)
- Drainage capacity 2 % fall (20 kPa) 0.60 l/(s.m) 0.60 l/(s.m)
- CE hEN EN 13252 hEN 13252
- Nophadrain Podium Deck System
- Nophadrain Extensive Green Roof System - medium pitched roof (only ND 200)
