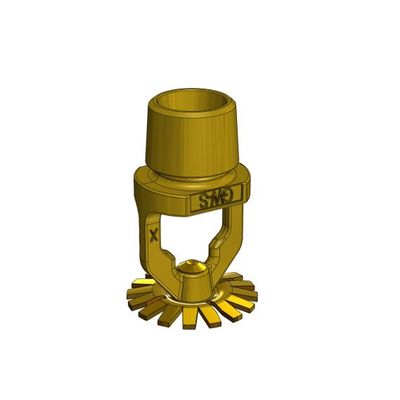

GW-S - Model SSP & CU/P -Drencher Nozzle - Marine

SHARE

The GW-S Drencher Nozzle is intended for use in special category spaces. Special category spaces are those enclosed spaces above or below bulkhead deck intended for the carriage of motor vehicles with fuel in their tanks for their own propulsion, into and from which such vehicles can be driven, and to which passengers have access. Bureau Veritas (BV) Approved for use as drencher nozzle in fixed water spraying systems having to comply with IMO Res. A123 (V).

The GW type “S” range of Drencher Nozzles offers the latest in design and performance, both highly compact and durable.

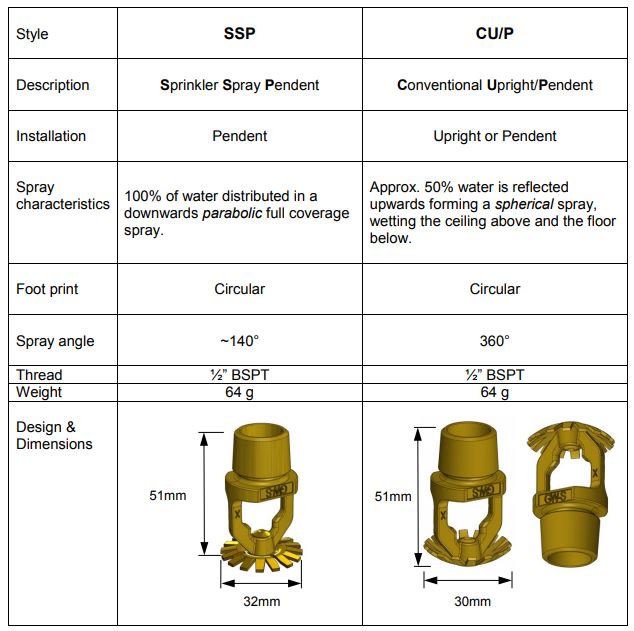

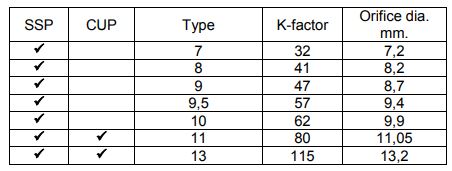

Drencher Nozzles are open sprinklers, available in two different styles and with different orifice sizes (K-factors) to accommodate most system design requirements.

  • Material: Brass, chrome plated (standard) SS316 stainless steel (optional)
  • Working pressure: 0,8 to 12 bar
  • Max. coverage per nozzle: 12 m²
  • Max. spacing: 4 m
  • Typical application rate:
    • 5 mm / m² / min.
    • The application rate of a fixed water spraying system can be varied by adequate selection of nozzle K-factor, nozzle spacing and operating pressure.
  • Approval: Bureau Veritas (BV).
  • Approved for use as drencher nozzle in fixed water spraying systems having to comply with IMO Res. A123 (V).

The GW-s Drencher Nozzle is intended for use in special category spaces. Special category spaces are those enclosed spaces above or below bulkhead deck intended for the carriage of motor vehicles with fuel in their tanks for their own propulsion, into and from which such vehicles can be driven, and to which passengers have access.
