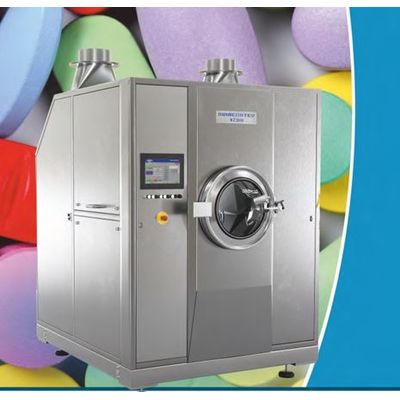

DRIACOATER - Model DRC1200 to DRC1900 -Air Handling System
DRIACOATER DRC1200 to DRC1900 is a highly efficient coating system which is designed to fulfill the demands of the pharmaceutical industry while meeting all the pharmaceutical requirements. Various options for film or suspension coating systems are available for all sizes of the DRIACOTER batch coater. The processing equipment and all peripheral equipment such as the air handling, exhaust, solution tanks, dosing pumps, controls etc. are made to your requirements and specifications.
Processand air handling in the DRIACOATER
The ait handling system has a tremendous impact on the coating quality, efficiencies and overall operating costs Therefore the DRIACOATER has a state-of-the-art" air flow system that takes nearly 100% of the conditioned process air from the air handler and applies it evenly to all products being coated.
Efficient air handling and cleaning procedure.
Working mil) an ducts is the most powerful way for drying the tablets as well as for saving of energy The pan is incorporated into an enclosed compart- ment with a basin for efficient automated chatting of the entire system
This efficiency is achieved by utilizing air channels on Ihe perforated sections of the drum to force air through the entire product bed. This level of control over the process air in the ORIACOATER reduces the coating process time and provides substantial cost savings over the entire life of the machine. For process benefits the air can be forced through the entire product bed in different directions.
HEWIP High Efficiency Washing In Place
By its design and efficiency, the DRIACOATER cleaning system, which has been optimized over many years, takes the demands of a high
level pharmaceutical cleaning system into account. Safe and automatic cleaning of the installation is guaranteed by using strategically placed spray nozzles to clean all relevant inner and outer surfaces of the pan. Recipe driven automation ensures tough and consistent cleaning. Once the drying phase is complete, the coater is ready for the next batch The perforated pan rotates in the washing chamber ol the machine which completely cleans the pan. All surfaces are presented to the cleaning nozzles (or the entire cleaning which is finished with the drying step.
Hygieneair ducts
During the cleaning process the air ducts can easily be removed completely to accel- erate the cleaning process.
Cleaning process
A recipe driven automated cleaning process is adapted to customer`s needs.
Process Control ORIAMATIC
Control for the coating process is done by a programmable logic controller, optionally equipped with an IPC. louch panel or other execution
- Operation
- Documentation
- Process monitoring
- Visualization
- Flexible data admin
