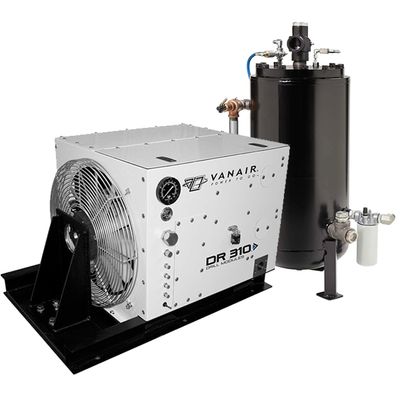

Vanair - Model DR 310 -Drill Modules
The compact DR 310 Drill Module provides an impressive 310 CFM and 200 PSI of air power (8.4 m3/min and 13.8 bar). Ideally suited for shallow wells where low pressure, low flow is required, the module can be hydraulically or engine driven. Designed for easy maintenance when mounted on the vehicle the DR 310 is readily available and steadfastly supported by Vanair’s expansive service team to keep you up and running!
Most popular related searches
screw air compressor
pressure relief valve
pressure relief safety valve
air filter
air filter dual
relief valve
clean air
safety relief valve
air filtration
discharge pipe
Air Compressor
| Rated Capacity | 310 CFM (8.4 m3/min) |
| Pressure | Up to 200 PSI (13.8 Bar) |
| RPM Input | 2500 RPM |
| Input BHP Required | Up to 108 HP (81 kW) |
Physical Specifications
| Compressor Module Weight | 900 lbs |
| Separator Tank Weight | 200 lbs |
Fan Power Requirements
| Fan Drive Method | Compressor Input Shaft |
Compressor Dimensions with Fittings (L x W x H):
- 46 x 30 x 30 (in)
- 1168 x 762 x 762 (mm)
Dimensions listed are not a complete representation of total space necessary. Please consult Vanair® for overall space and air requirements.
PERFORMANCE
- 310 CFM and 200 PSI
- Industry Leading Rotary Screw Air Compressor
- Compact Design
- Easy to Operate and Maintain
- Simple Controls and Piping
- Built for Harsh Environments
- Made in the USA
- Rotary Screw Air Compressor
- Single-Stage
- Field Proven Performance
- Recirculating Valve for Noise Reduction
- Discharge Pipe SAE 2.5-Inch Code 61 Flange with Leak-Free Fittings
- Vertical Design for Smaller Footprint and Angle of Operation
- In-Tank Coalescer for Longevity
- Minimum Pressure Valve
- Pressure Relief Valve
- Oil Scavenge Sight Glass
- Coalescer Restriction Indicator
- Ambient Operating Range of -20 °F to +120 °F
AIR FILTER
INSTRUMENTATION
- Dual Two-Stage Air Filters with Dust Evacuators for Clean Air
- Air Restriction Indicator
- Conveniently Located, Easy-to-Read Temperature and Pressure Gauges
- Oil Level Sight Glass
- Easily Accessible Air Filters and Coalescers for Routine Service
- Independent Separator Tank for Ease of Maintenance
- Hinged–Top Roof and Access Panel for Maintenance and Adjustments
- Dust Evacuator for Easy Filter Maintenance
- High-Pressure Shutdown
- Air Pressure Relief Safety Valve
- Automatic Blowdown on Shutdown
- Oil Fill Plug Safety Relief
- Minimum Pressure Valve
- Mounting Provisions on the Bottom of the Frame
- Heavy Duty Frame with Integral Forklift Tubes
- Powder Coated, Galvanneal Sheet Metal Enclosure
