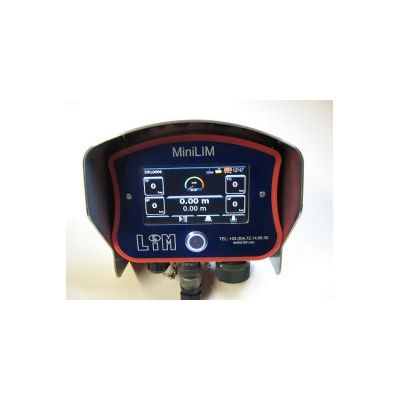

LIM - Model Visualim 5G -Drilling Data & Production Statistics

Drilling data & production statistics "smart" indicator;  3D angles (2D angles compensated to a relative azimuth) for drill mast positionning and Depth/Drilling speed indication. Production statistics recoverable by USB. C.A.N. BUS (Controller Area Network) Technology. Multilingual device : English / French / German / Spanish / Italian / Japanese (katakana characters). Metric and Imperial units. Many display options in real time: 2D angles, current drilling depth, distance to the bottom, altitude (Laser option), instantaneous and commercial drilling speed, hydraulic pressures. Alarm when the pre-entered depth is reached with possibility of direct intervention (the drilling is automatically stopped). Display of total drilled depths and holes between two resets (corresponding to a shift, day, week, ...) and since the device installation.
