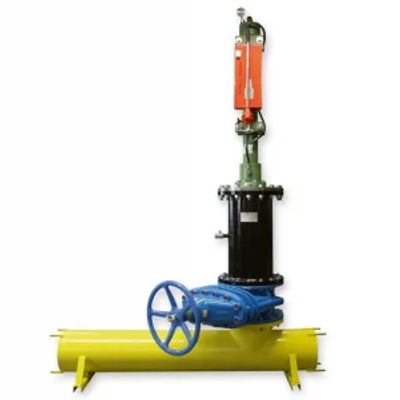

Staedtler - Model Titan 6900 -Drilling Machine
The TITAN drilling machine is suitable for drilling metal pipes with a bore diameter of DN 80 to DN 300 or 3 to 12 inches. Operating pipes can be tapped up to an operating pressure of 4 bar without any media leakage. The devices are available in two different sizes with a travel range of 650 mm or a travel range of 1200 mm. We would be happy to advise you on the application and equipment of your individual TITAN tapping device.
Suitable for drilling metal pipes with a bore diameter of DN 80 to DN 300 or 3 to 12 inches. Up to 4 bar operating pressure. No media leakage. Travel distances max. 650 or 1200 mm.
Variants
- 69000001 TITAN drilling machine, travel max. 650 mm, 4 bar, DN 80–300, 3″-12″
- 09000003 Torque absorption travel 650 mm from DN 200, 8″
- 69000275 TITAN drilling machine, travel max. 1200 mm, 4 bar, DN 80–300, 3″-12″
- 69000276 Torque absorption travel 1200 mm from DN 200, 8″
Scope of delivery
- A drilling machine with integrated drill rod
- A torque absorption up to DN 150
- Two handles for feed adjustment
- An Allen key
In addition, all devices are customized to your application and tailored precisely to your needs from our extensive range of accessories. We would be happy to advise you on the selection and help you find the best solution for your application.
