Drilling Mud Tank

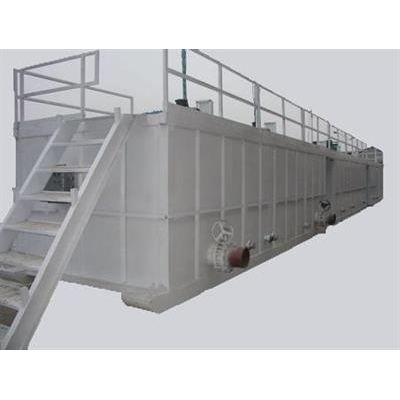

Mud tanks, also known as mixing tanks and slurry tanks in the solid-control equipment industry. Mud tanks are mainly used in oil drilling, directional crossing, gas layer exploration, sewage treatment and other industries. They are necessary equipment for mud processing equipment and mud circulation system to store drilling mud. According to different design standards, it can be divided into: vertical mud tank and horizontal mud tank. Huayang Oil & Gas Equipment Co., Ltd. specializes in producing mud tanks, circulating tanks, mud tanks produced, and strict quality control in material selection and production process. The mud tank configured by the mud treatment system has the advantages of good material of the tank body, excellent welding process, good sealing performance of the pipe diameter interface, corrosion resistance and long service life!
- The tank body is made of 6mm thick steel plate and 100×100mm square tube steel. The side plate of the tank is pressed into corrugated structure; the base is made of 8mm thick steel plate and 250mm I-beam and 10# channel steel. The rib group welding, except for the manhole and equipment installation position, the 5mm thick anti-skid plate is used
- The anti-slip steel plate and the anti-slip steel grating produced by the professional factory are used for the tank surface and the walkway. The height of the tank railing is 1000mm, and the square is used. The steel pipe is made, and it is connected with the tank surface pin. The connection is fixed and reliable, and the skirting board is arranged below.
- The supporting equipment is easy to operate, maintain, transport and install. The tank surface has sufficient strength to support the tank surface equipment, which is enough to ensure the tank equipment is fixed and reliable.
- The upper tank ladder adopts white channel steel as the main body, which is a relatively spacious anti-skid ladder. The pedal level (using non-slip steel grating) and double side railings are fixed, safe and reliable.
- The tank shall be marked with the nameplate (English) to indicate the basic performance parameters of the tank; each silo clearing port of the tank shall be sealed by a convenient and practical sand-cleaning door, which can effectively meet the needs of mud discharge and sand cleaning; In the aggravation pipeline, the mud flows into different warehouses and is controlled by high-position butterfly valves. Each compartment of the tank is provided with a manhole and a wall ladder. The four corners of the tank base are provided with suspension safety lifting positions, and the tank body is strictly guaranteed to be lifted. The process is safe and reliable; the tank has two 12-inch mud pump suction ports, which are respectively sucked into the mud of the mud removal bin and the mixing bin, and sealed with a mask.
Mud circulation design requirements
- The system must be based on the principle of “advanced, reliable, safe, convenient and economical”.
- The system design and manufacture should meet the HSE requirements of the drilling industry.
- The system should be designed reasonably to meet the requirements of rapid demolition, installation, clearing and easy maintenance.
- The system should meet the 4000m land oil drilling rig for mud preparation, aggravation, shearing, metering, screening, recycling, purification and control. And other modern drilling process requirements.
- Meet two mud pumps at the same time
- Mud circulation purification system should ensure normal operation at -35 ° C ~ +50 ° C ambient temperature
- Mud circulation purification system for a variety of equipment selection of quality products
- Mud circulation purification system design and manufacture SY/T5612, SY5255, SY/T5707, SY5302 ~ 5309 standard
- The nameplate of all equipment is in Chinese and English. The process in the tank is clearly marked, and each gate valve must have (Chinese and English) logo
