PRIDE - Model URB 3A3 - Drilling rig ...

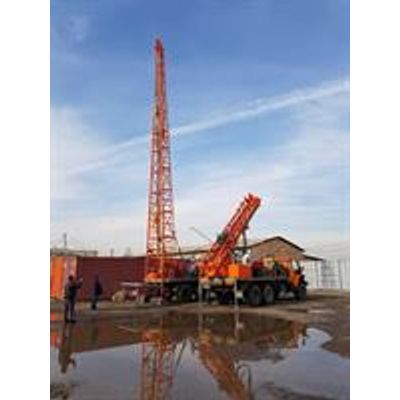

PRIDE - Model URB 3A3 -Drilling rig URB3A3

🔥🔥🔥Specifications🔥🔥🔥 Conditional depth of drilling, m: pipes with a diameter of 60.3 mm; 63.5 mm - 500-600 (Optionally till 1000 🔥) pipes with a diameter of 73 mm; 89 mm 300-400 (Optionally till 600 🔥) Rotor feedrate, 5200 mm Maximum lifting force, 20000 kg Maximum pressure on the face, 6000 kg Rotator type movable, continuous Maximum torque on the spindle, 8000 N*m Maximum number of revolutions per spindle,110 rpm Winch type for auxiliary operations hydraulically driven Payload of winch, 2000 kg Mast type Steel, welded with open front face Recommended bar length, 4.7 m Pressure in the system, working 16MPa. maximum 20 MPa https://www.youtube.com/watch?time_continue=64&v=_1h0Gk36IwQ
