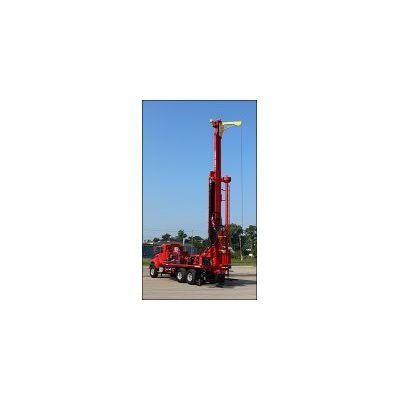

VERSA - Model V-140X -Drilling Rigs

Derrick
10"x16" tubular derrick construction
35` 10" overall length
26` top head travel
55,000 lbs rating
(No derrick crown load)

Feed System (patented)
Pullback     40,000 lbs
Pulldown     22,100 lbs
Travel Speed     Up 0 to 121 FPM
Down 0 to 218 FPM

Standard Top Head
2 motor combination planetary/spur gear
Variable 3 speeds/torques
High 8,100 ft-lbs @ 125 RPM
Mid 5,840 ft-lbs @ 175 RPM
Low 3,545 ft-lbs @ 250 RPM

Main Winch & Jib Boom
Hydraulic power with integral brake
Rope capacity: 220` of 5/8" cable
Lift capacity: 12,000 lbs single line (bare drum)
Speed: 104 FPM
Jib boom: Hydraulic swing/extend for main hoist line

Cooling
Hydraulic oil cooler mounted on deck and compressor cooler
mounted in cabinet with compressor

Controls
Left hand mounted, functionally grouped gauges and controls with twin fold-up platforms

Leveling Jacks
2 front-mounted 36" stroke
2 rear-mounted 36" stroke
Independent controls

Centralizer
Retracting hydraulic split centralizer table including hydraulic breakout wrench and air operated holding wrench

Maximum 12" casing through centralizer table

Carousel
Hydraulic powered, derrick-mounted carousel with holding flats for makeup and break out purposes
17 pieces of 3"x20` drill rod
15 pieces of 3 1/2"x20` drill rod
11 pieces of 4 1/2"x20` drill rod

Dimensions
Overall Length     35` 10"
Overall Height     Derrick up: 40`
Derrick down: 12` 8"
Overall Width     8`

Options (at additional cost)
Air Compressor
500 CFM/200 PSI self-contained module

Rod Handling
Automated/Manual rod handling for 3 1/2" OD x 20` drill rod (only)

Main Winch
18,000 lbs (bare drum)

Auxiliary Hoist
2,000 lbs (bare drum) 142 FPM
4,000 lbs (bare drum) 164 FPM
8,000 lbs (bare drum) 77 FPM
*Each with swing jib and 1 additional LED night light

DHD Lubricator
7 gallon capacity

Water Injection
FMC Bean Pumps
- 9 GPM
- 25 GPM with foam injection

Mud Pumps
3x4 centrifugal with mechanical seal
5x6 piston-type hydraulic driven
6x8 piston-type hydraulic driven
Centerline MFG mud pumps

Grout Pump Assembly
1 1/2" Bowie pump mounted inside of deck
2" Bowie pump
3L4 Moyno pump
3L6 Moyno pump
Geo-Loop grouter

Night Lighting System
3 LED lights mounted on derrick and above control panel

Hose Reel
Manual 1.18" hose OD (capacity 175`)

Truck Specifications
Peterbilt Model 348 6x6 (all wheel drive)
Wheelbase: 220"
Cab-to-Axle: 150.2"
GVWR: 54,600 lbs

Axles and Suspension
Front Axle Rating: 14,600 lbs
Front Suspension: 14,600 lbs leaf
Rear Axle Rating: 40,000 lbs tandem*
Rear Suspension: 40,000 lbs Haulmaxx (HMX400)
*Driver controlled full locking axles
Wide track rear suspension
Super singles on all tires (425/65 R 22.5), mounted on Alcoa aluminum wheels

Engine
PACCAR PX-8 330 HP

Transmission
Allison automatic transmission

Brakes
Air brake system with anti-lock brakes included

Clutch
Two plate, 14" diameter ceramic clutch

Fuel Tank Capacity
100 gallon
