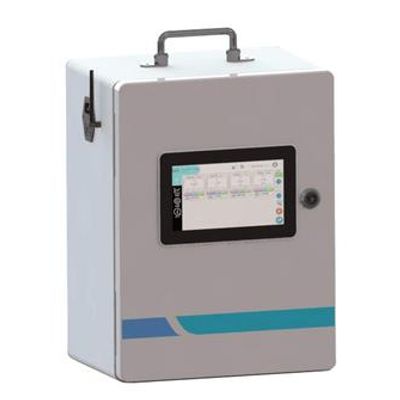

swa-t - Model T-PXX -Drinking Water Monitoring System
FromUlikSensor
iSpark series of water quality monitoring systems are a set of control, sensing, wireless communication, edge computing, and cloud platform as one of the multi-functional water quality monitoring systems.
Most popular related searches
water monitoring system
water quality monitoring system
water monitoring
water system monitoring
water quality monitoring
water quality
drinking water monitoring
total chlorine
residual chlorine
drinking water
- It can monitor COD, TOC, turbidity, residual chlorine / total chlorine, pH, conductivity, and water temperature in real-time, the parameters can be selected according to user needs.
- Water quality information through the system to achieve on-site collection and detection, and can be real-time transmission to the edge of the computing system, after the big data statistics, analysis and automatic data verification, and cloud platform interaction.
- Monitoring Parameter: COD, TOC, TUR, FCl,TCl, pH, EC, Temp , etc. (optional)
- Display Screen: 7 inch color LCD touch-screen
- Communication Interface: 1-way RS485 interface (Modbus RTU protocol); 4G, WIFI (HTTP, MQTT protocol).
- Measurement Interval: Minimum 10 S, adjustable
- Dimension: 400×300×200 mm
- Weight: 30 kg (varies depending on options)
- Mouting Wall-mounted
- Power Supply: AC 220 V
- IP Rating: IP 65
- Tube Interface: 6 mm OD tubing (optional tubing fittings, ¼ into 6mm)
- Sampling Requirements: Flow rate: 100~1000 mL/min, optimal flow rate: 200~500 mL/min;
- Pressure ≤1 MPa.
- Humidity: Relative humidity 5% to 95%, non-condensing
- Working Temp: 0~50?(32~122?)
- Certification: CE/RoHS
- Warranty: One year
