Hurricane - Model HD10000 - Drop Hammer

Hurricane - Model HD10000 -Drop Hammer

FromHurricane Attachments

SHARE

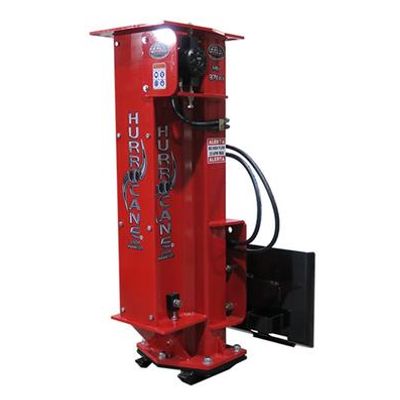

The Hurricane Drop Hammer HD10000 is a high-production, low-maintenance drop hammer for breaking flat concrete. Drop hammers are superior to hydraulic hammers or breakers at breaking flat concrete in every important category. The HD10000 is easily connected to a skid steer or an excavator. It efficiently breaks flat concrete in industrial tear-outs, as well as parking lots, curbs, roads, runways, aprons, and sidewalks up to 20 inches thick.

Most popular related searches

hydraulic hammer

hydraulic breaker

concrete thickness

concrete pulverizer

impact crushing

Drop Hammer impact-to-weight ratio crushes that of a hydraulic hammer.
The bolt-on-ground engagement end plate makes maintenance accessible and easy and eliminates vibration back to the skid steer or excavator found in hydraulic breakers.
Low maintenance because there are no points, bushings, seals, or accumulators to replace, and there are no oil leaks or nitrogen charging found on hydraulic breakers.
Drop hammers pulverize concrete, making clean-up and disposal easier and less expensive, with no heavy, large concrete slabs to deal with like a hydraulic hammer.

Impact Energy Blow: 3,700 Ft/Lbs/Class
Blows Per Minute:25 – 30
Total Impact Energy (per minute):112,000
Operating Weight: 2,300 lbs
Max Oil Flow Demand: 23 GPM
Min Hydraulic Pressure: 2,200 PSI
Operating Height (weight extended): 7′ 6″
Dimensions (HxWxD): 5′ x 1’ 4″ x 1’ 6″
Breaks concrete thickness up to: 12 inches*
