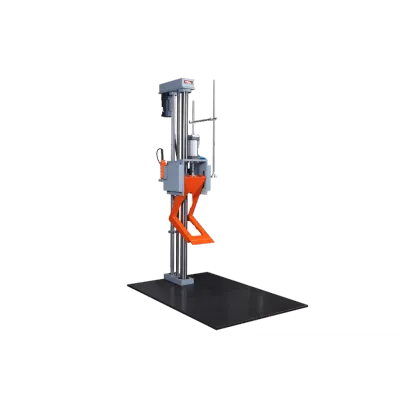

Labtone - Drop Test Machine
The drop test machine manufactured by Labtone is designed to evaluate the impact resistance of packaging during various stages of transportation, handling, and usage. The '1G+' series ensures precise plane fall tests and can also perform edge and corner drop tests, providing a comprehensive assessment of a package's performance. The DT150 and DT200 models offer drop heights between 300 to 1500 mm and 300 to 2000 mm, respectively, with a payload capacity of 85 kg. The machine's dimensions and weight accommodate robust packages, with machine sizes of 1000*1500*2100 mm and 1200*1700*2600 mm, and weights of 480 kg and 550 kg, respectively. It operates on AC220V 50Hz power and compressed air of 0.5~0.7Mpa. The system complies with standards ISO2248-72(E), GB/T4857.5, JISZ0202-87, IEC68-2-27, and ASTM D5276. Labtone also offers prompt technical support and after-sales service within 12-24 hours, addressing any reported faults.Most popular related searches
Packaging drop test is used to determine the effect of impact on the package during use, transportation, loading and unloading. Thestrictly designed LABTONE “1G+” ensures its accuracy. Apart from accurate plane fall test, it can also perform edge frop and corner drop test to make a complete evaluation on the performance of packaging and product.
- Satisfy and even beyond GB, IEC, ASTM, ISTA and other industrial standards;
- Can perform surfaces, corner and edge drop;
- Precise guiding system and is driven pneumatically;
- Unique swing arm structural design, escape acceleration of swing arm detachment greater than 3G;
- With double column guide, hydraulic buffer absorb the force of the swing arm, the movement is stable, reliable and with low noise;
- Self-locking screw in lifting mechanism to prevent abnormal detachment of swing arm;
- Extensible support bracket and bottom slab.
