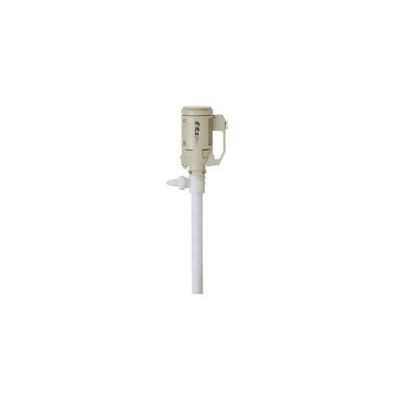

FTI - Model TBP Series -Drum/Barrel Pump
The economical TBP series drum (container) pump handles light to medium viscosity fluids. Constructed of pure materials, it is ideal for use with bleach, nitric acids, hydrochloric acids, sulfuric acids, etc. The 1.66` (42mm) tube diameter is designed to accommodate drums with smaller bung openings. Typical applications include: Municipal water treatment facilities, swimming pool supply houses, water parks, anywhere that bleach is used in drums/barrels or containers.
- Sealed
- Unique lifting compressor design
- Handles corrosive liquids
- Pump tubes interchangeable with motor selections
TBP
Shaft Material: alloy 625
Outer Material: Polypropylene/PVDF
Available Lengths
US: 27", 40", 48"
Metric: 69cm, 102cm, 122cm
M10X
RPM: 10000
Enclosure: Explosion proof
Electric: 230 V, 50/60 Hz
M13
RPM: 10000
Enclosure: IP24
Electric: 115 V, 50/60 Hz
M3
RPM: 10000
Enclosure: Drip-proof
Electric: 115 V, 50/60 Hz
M3T
RPM: 10000
Enclosure: TEFC
Electric: 115 V, 50/60 Hz
M5
RPM: 10000
Enclosure: IP24
Electric: 230 V, 50/60 Hz
M5T
RPM: 10000
Enclosure: IP54
Electric: 230 V, 50/60 Hz
M6
RPM: 300-6,000
Enclosure: Air
M3V
RPM: 10,000 variable speed
Enclosure: Drip-proof
Electric: 115 V, 50/60 Hz
M5V
RPM: 10,000 variable speed
Enclosure: IP24 Splash-proof
Electric: 230 V, 50/60 Hz
M5V-US
RPM: 10,000 variable speed
Enclosure: IP24 Splash-proof
Electric: 230 V, 50/60 Hz
