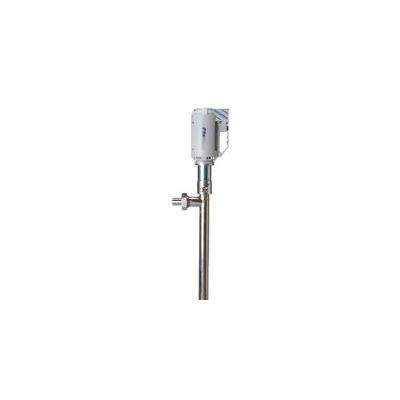

FTI - Model HDVP Series -Drum/Barrel Pump
HVDP Series drum pumps are positive displacement pumps using a progressive cavity design to gently move highly viscous materials up the pump tube in a smooth, non-pulsing flow. The progressive cavity design requires a relatively slow speed to operate properly. A planetary gear set speed reducer enables the HVDP Series pumps to accept 800 watt universal, induction or air motors.
- Progressive cavity design
- Up to 100,000 cP
- 316 stainless steel tube and shaft
- Buna-N, Viton®, or PTFE stator materials
- Mechanical seal or packing design
- Unique camlock feature easily disengages tube for cleaning
- HR versions for use with M58H or M59H universal motors
- LR version for use with air or induction motors (M60-M66)
M58H
RPM: 10,000 variable speed
Enclosure: TEFC
Electric: 115 V, 50/60 Hz
M59H
RPM: 10,000 variable speed
Enclosure: IP54
Electric: 230 V, 50/60 Hz
M60
RPM: 3450
Enclosure: TEFC
Electric: 115/230 V, 60 Hz
M61
RPM: 3450
Enclosure: TEFC
Electric: 115/230 V, 60 Hz
M62
RPM: 3450
Enclosure: TEFC
Electric: 115/230 V, 60 Hz
M63
RPM: 3450
Enclosure: TEFC
Electric: 230/460 V, 50/60 Hz
M64
RPM: 3450
Enclosure: TEFC
Electric: 230/460 V, 50/60 Hz
M65
RPM: 300-3,000
Enclosure: Air
M66
RPM: 300-3,000
Enclosure: Air
