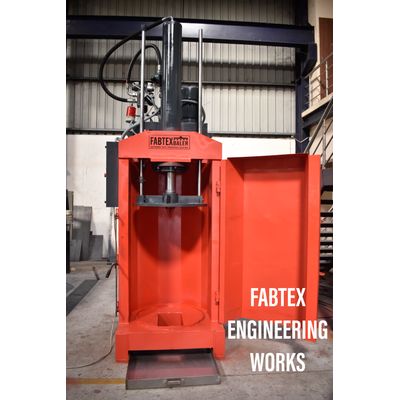

FABTEXBALER - Model DC30 -Drum Crusher
The ‘FABTEX’ make Drum bale press is designed to flatten drums of 30 – 220 Lt Size using hydraulic system. This important process in recycling resolves the problem of space and efficiency for most of the users. This machine mainly focuses on reliability, superior press force, and simple mechanism, maintenance free and safe functional working environment for the operator. This type of baler is classic style, electrical button operation and safety chain lock.Most popular related searches
Applications:
- Oil drums
- Paint barrels
- Any other type of Steel/Aluminum drums
Sailent Features:
- Low height and small footprint.
- Spikes: for puncturing the drums/barrels to release pressure formed during the operation.
- Oil collection tray provided.
- Blocker: for well positioning of drums in the baling chamber.
- Electric Controlled for easy and simple operation.
- High compaction ratio to meet the buyers demand.
- Oil Cooler Optionally provided for maintaining viscosity and trouble free flow of Hydraulic Oil.
- Semi-automaticbale ejection Optional attachment enables the work of operator easier.
Technical Specification:
- Type: FAB/DC/03
- Capacity (t): 25
- Chamber Size (mm): (L x W x H) 760 x 760 x 1000
- Drum Size after compaction (mm) 760 x 760 x 100 – 150
- Motor Power (HP): 7.5
- Oil Capacity (Lit):100
- Cycle Time (secs): 40
- Weight of the Machine (t): 1.5
