PWL - Model MDF -Drum Filter MDF With Screen

The MDF drum filter is a completely encapsulated machine that is made of different types of stainless steel to suit the medium. A depth filtration effect can be achieved by the filter cake already mentioned above. An additional benefit in terms of ease of maintenance is the possibility of replacing individual segments of the filter mesh made of stainless steel .

The MDF rotary drum filter offers a wide range of benefits to different users. For example, the drum filter made of stainless steel impresses with continuous effective filtration with high separation efficiency. The micro-screening takes place completely without the addition of chemicals, the solids treatment is absolutely gentle. This drum filter also pays off quickly from a financial point of view, since the operating costs are significantly lower than with comparable variants. With useful functions such as the separation of abrasive media or the fully automatic cleaning with air or process water, this filter is a true all-rounder and is suitable for a wide variety of applications. In the following overview we have clearly listed the most important advantages of the MDF:

• Effective, continuous operation and high separation efficiency
• Micro screening without chemical additives
• Gentle treatment of solids
• Separation of abrasive media possible
• Low running costs
• Fully automatic cleaning with air or process water possible

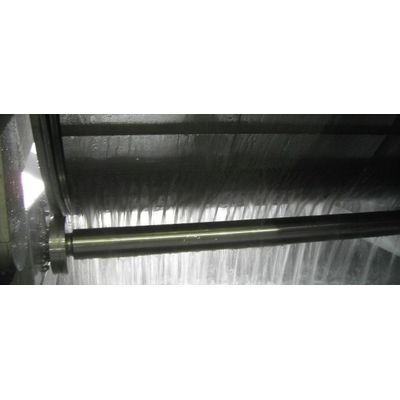

The drum filter is a system made of stainless steel, designed for separating solids and liquids in the process and waste water sector. It is used in a wide variety of industrial sectors. From the inlet connection of the rotary filter, the waste water enters the filter drum, which consists of a steel construction covered with stainless steel wire mesh. The solids settle on this fabric and are conveyed upwards by the rotating filter drum. The level-dependent control of the drum rotation enables the build-up of a filter cake, which ensures an even higher separation effect. The filtrate flows down through the stainless steel filter mesh and thus returns to the pump circuit or the channel etc. The solids filtered out, which have been transported upwards by the rotating filter drum are blown downwards by a blow-off register. The falling solid parts reach the discharge conveyor, which can also be designed as a press, and are thus transported out of the filter drum.

Professional mechanical wastewater treatment serves the purpose of restoring the original water quality. This is done by separating all dirt components that are present in the wastewater. All methods that are suitable for the harmless cleaning, drainage, recovery and recycling of different and also reusable materials are assigned to this subject area. An additional goal is to reduce the amount of waste water as much as possible. In this context, various cleaning and treatment processes are used. The field in which PWL Anlagentechnik specializes is specifically the physical and mechanical treatment and treatment of waste water. Against this background, we provide an extensive portfolio of high-quality products. These include the drum filters described in detail above, but also circulating rakes, screenings presses or sand washing systems and many other solutions. Our company has been supporting industrial companies and municipalities with a professional process and procedure configuration for several decades. In doing so, we always make sure that this is precisely tailored to the specific individual needs. Our company has been supporting industrial companies and municipalities with a professional process and procedure configuration for several decades. In doing so, we always make sure that this is precisely tailored to the specific individual needs. Our company has been supporting industrial companies and municipalities with a professional process and procedure configuration for several decades. In doing so, we always make sure that this is precisely tailored to the specific individual needs.

As experts in physical and mechanical wastewater treatment, we design various systems and machines that are used in municipal sewage treatment plants and in many different industrial areas. In doing so, we draw on extensive application-related know-how. First of all, we always deal with the individual operating conditions that we find on site at our customer. These serve as the basis for our constructive configuration or adaptation of an efficient and customer-specific solution. We pay great attention to the appropriate choice of process technology for the separation process of the dirty water as well as to the possible use and further treatment of accepts. Whether it is an individual component or even a complete system - we work with all the solutions we deliver according to the highest quality standards by which we allow ourselves to be measured. This includes both the area of procurement and that of our production.

Our solutions such as fine or coarse screens ensure a significant increase in the economic and technical efficiency of industrial and municipal sewage treatment plants. The comprehensive solutions from PWL, such as the MDF drum filter made of stainless steel, are primarily used in various industrial sectors. The numerous screening machines from our portfolio are the first choice when it comes to effectiveness and reliability in process water treatment and wastewater treatment. Spiral screens or the rotary drum filter described in detail on this page complete this comprehensive range. We have also developed our spiral and screw presses for collecting screening residues and screenings in waste water systems and various production processes. We also rely on spiral conveyors. They are used for the reliable, hygienic and space-saving transport of good and residual materials. Our delivery program for everything to do with mechanical wastewater treatment is rounded off by grit washing systems and various grit washers as well as sewer grit receiving stations. Thanks to this comprehensive range, PWL Anlagentechnik, based in Bückeburg in the district of Schaumburg in Lower Saxony, covers a wide range of applications. This begins, among other things, with sedimentation and sand trap systems, extends to solid-liquid separation and bunker systems and extends to drainage systems. Our delivery program for everything to do with mechanical wastewater treatment is rounded off by grit washing systems and various grit washers as well as sewer grit receiving stations. Thanks to this comprehensive range, PWL Anlagentechnik, based in Bückeburg in the district of Schaumburg in Lower Saxony, covers a wide range of applications. This begins, among other things, with sedimentation and sand trap systems, extends to solid-liquid separation and bunker systems and extends to drainage systems. Our delivery program for everything to do with mechanical wastewater treatment is rounded off by grit washing systems and various grit washers as well as sewer grit receiving stations. Thanks to this comprehensive range, PWL Anlagentechnik, based in Bückeburg in the district of Schaumburg in Lower Saxony, covers a wide range of applications. This begins, among other things, with sedimentation and sand trap systems, extends to solid-liquid separation and bunker systems and extends to drainage systems.
