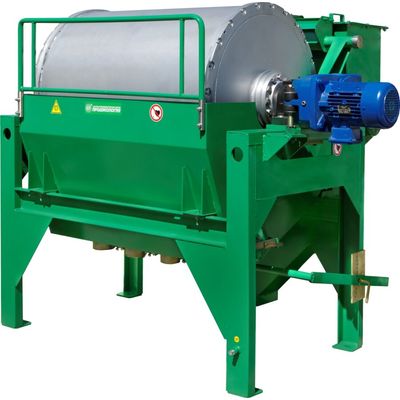

SMF - Model PBM -Drum Magnetic Separator

Designed for wet benefication of ores and other materials.

Supplied to enterprises of the following industries:

• production of magnetite concentrate
• removing of magnetic scrap from the grind products of the ball mills
• removing of magnetite before the wet high-gradient separation of weakly magnetic ores
• regeneration of heavy media with the help of weighting material
• removing of the strongly magnetic impurities from the ceramic suspensions and clinker.

• Building ceramics industry
• Coal mining industry
• Lead and zinc industry
• Mining and beneficiation of ore raw materials for ferrous metallurgy
• Porcelain industry
• Titanium-magnesium industry

The product is fed into a receiving tank of the separator by pipeline spreading it evenly across the entire width of the working area of the tank. Ferromagnetic impurities deposited on the drum shell in an area of the magnetic system are removed from the working area into a unloading zone and washed off into the receiving tank with help of a directional water flow.

• Designed with the use of both the ferrite and the modern high neodymium magnets Nd-Fe-B, ensuring the value of the magnetic induction on the surface of the drum within 50-500 mT.
• Uniformity of the magnetic field in the area of separation of magnetic impurities. promotes effective operation of the separator (there is a patent for a magnetic system).
• Increased magnetic field strength can improve the capacity of separator.
• On request, separator can be equipped either with a control panel complete with a frequency converter for stepless controlling of the shell speed or without the frequency converter with one or two fixed speeds and stepless starting of the drive.
• Components of the leading countries (Nord, SKF) with high performance are used.
• Designed with 3 standard drum diameters: 900, 1200, 1500 mm with the length of working zone within 1000 mm to 3000 mm.
• Stainless shell made of the steel 12?18?10? of 6 mm thick significantly extends the life of its operation.
• Supplied with dimensions and types of baths according to agreement with customer.
