MSI - Drum Separators for Magnetic Separation
Magnetic Systems International (MSI) offers advanced drum separators designed for efficient magnetic separation of ferrous and non-ferrous materials. The system processes the product through a housing where it encounters the rotating drum. This outer shell rotation facilitates continuous cleaning of the magnet system, ensuring effective separation. Non-magnetic materials fall into a ferrous-free zone, while magnetic materials cling to the drum until they are discharged into a ferrous collection area. Drum separators are available in two main types: drum-in-housing magnets and drum-only magnets. The drum-in-housing design suits operations requiring integrated systems with continuous cleaning, while drum-only magnets are ideal for applications involving existing chutes, end-of-pulley placements, or vibratory conveyors. The drum separators come in radial and axial configurations, both offering behavior similar to magnetic head pulleys but with additional advantages. Technical data sheets and product specifications are accessible for detailed understanding and evaluation.
With the MSI’s drum separator, the product being processed enters the housing and flows across the drum. As the product flows, the outer shell rotates around the magnet material. All non-magnetic product falls into the ferrous-free zone, while all magnetic material remains on the drum until it is moved past the magnetic field and released into the ferrous collection area.

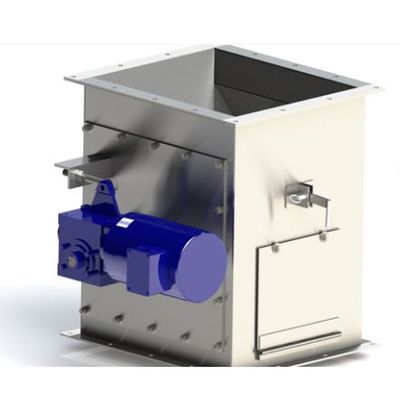

Drum-in-Housing Magnets
The drum magnet design allows for continuous cleaning of the magnet system, accomplished by the rotation of the drum itself around the magnetic element. Similar to cleaning belts on MSI’s self-cleaning suspended magnet, the rotating drum features wipers that clear away ferrous collected on the drum surface. Like MSI’s pulleys, drum-in-housing magnets are available in two difference configurations: radial and axial designs.
- AXIAL DESIGN is the work horse for magnetic drum applications and is used widely through a number
of industries. This design provides agitation, improves separation, and can provide good reach out into deep burdens, as needed. - RADIAL DESIGN is typically used for the separation of fine ferrous from fine burdens, like magnetic particles from sand.
Separation behavior for both axial and radial designs are similar to magnetic head pulleys with added advantages:
- the separator does not require a conveyor system, saving money;
- in larger diameters, drum separators can be built stronger and more economically than pulleys;
- the damper can be adjusted and the magnet can be used both to separate and to meter burden flow, and
- optional removable shell consideration: the magnetic element is separate from the rotating shell, so in abrasive applications the design allows for shell replacement.
Drum-Only Magnets
Drum magnets (with out the housing) are also available. These magnets are often used at the end of pulleys or vibratory conveyors, when customers already have existing chutes, and in some other specialized situations where stationary separators are inadequate.
- Material :
- Ceramic
- Rare earth
- Alnico
- Hybrids and combinations
- Sizing
- 12” to 48” diameters
- 8” to 72” face width
- Custom sizes available
- Options :
- Radial or axial circuits
- Customized magnetic circuits for specific applications
- Welded or bolt-on configurations
- Standard 180- to 220-degree magnetic coverage with custom options available
