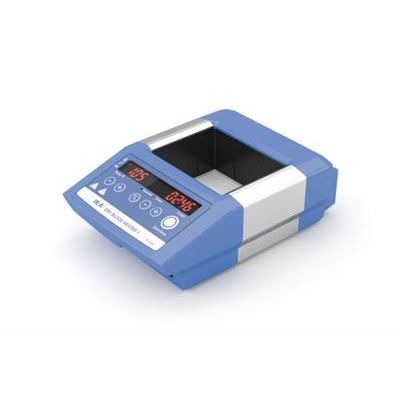

IKA - Model 1 -Dry Block Heater
Digital block heater for one aluminum block provides precise temperature control in small vessels. Included PT-1000 temperature sensor allows temperature control directly in the sample vessel. It is used with PCR tubes, PCR strips, Greiner tubes, microplates and cuvettes. The block heater is ideal for melting and boiling point determination, enzyme reactions, incubation and activation of cultures, immunoassays, DNA denaturation, culture media tests, coagulation tests, blood-urea-nitrogen determinations and in situ hybridizations.
Most popular related searches
dry block heater
temperature sensor
digital temperature controller
PCR tube
culture media
coagulant testing
nitrogen determination
platinum temperature sensor
laboratory homogenizer
cuvette
- Stepless adjustable temperature up to 120 °C
- Timer: Countdown, adjustable from 1 min to 99h 59min
- Counter: Display of heating time
- Highly versatile with a large number of blocks
- Error code display
- Fixed safety circuit
- Acoustic signal at end of test
- Number of blocks 1
- Heat output 165 W
- Heating temperature range room temp. +5° - 120 °C
- Temperature display yes
- Adjustment and display resolution 1 K
- Connection for ext. temperature sensor CT (DIN12878)
- PT 1000 variation;DIN EN 60751 Kl. A ≤ ± (0.15 +0.002xITI) K
- Temperature stability within the blocks at 37°C * 0.2 ±°C
- Temperature stability within the blocks at 60°C * 0.4 ±°C
- Temperature Homogenity @ 37°C * 0.2 K
- Temperature Homogenity @ 60°C * 0.4 K
- Heatingrate / Heat up time with external sensor * 5 K/min
- Set-up plate material Aluminium alloy
- Set-up plate dimensions 96 x 76 mm
- Fixed safety circuit 150 °C
- Timer yes
- Time setting range 1 - 5999 min
- * Measured in IKA DBH Testingblock Refer Manual for more details
- Dimensions (W x H x D) 151 x 73 x 228 mm
- Weight 1.342 kg
- Permissible ambient temperature 5 - 40 °C
- Permissible relative humidity 80 %
- Protection class according to DIN EN 60529 IP 21
- Voltage 220 - 240 / 115 / 100 V
- Frequency 50/60 Hz
- Power input 165 W
