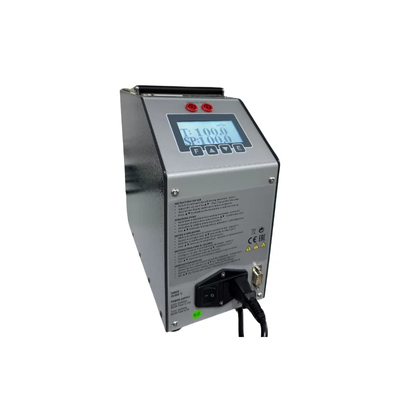

Eurotron - Model T140M-MK2 -Dryblock Temperature Calibrator for Low Temperature
The T140M-MK2 is a fast, time-saving, cost effective calibrator designed specifically for the maritime industry and engines technician. Maximize accuracy with a one year recommended calibration interval, or lower the cost of ownership by extending the interval to a maximum of two years.
Most popular related searches
- Range: -45 (from ambient) to 140 ºC
- Block : Ø 19 mm /Depth 104 mm
- Range (@20C): -24 to 140 °C
- 1 year accuracy: ±0.25°C full range
- 2 year accuracy: ±0.6°C full range
- Stability: ±0.05°C full range
- Resolution: 0.1°C/0.1°F full range
- Display: 2 lines LCD-°C or °F user-selectable
- Block Diameter: 19 mm
- Block Depth: 104 mm
- Insert: Standard insert A , 4 holes : Ø 4.8 mm, Ø 6.4 mm, Ø 6.4 mm, Ø 3.3 mm
- Heating Time: 20°C to 200°C in 20 min including stabilization time
- Cooling Time: 20°C to -20°C in 20 min including stabilization time
- Ramp: Yes fully programmable
- Switch test: Yes with automatic capture/saving of contact close/open
- Interfaces: RS232
- Power Requirement: 100-230 VAC, 50/60 Hz, Automatic switching- 80 W
- Size: 130 x 260 x 280 mm (H x W x D)
- Weight: approx. 4.9 kg
- Scope of supply: Temperature calibrator, standard insert, tool for insert removal, switch test
- leads, instruction manual, calibration certificate
- Fast heating and cooling
- High Stability
- Built-in stand alone temperature switch test function
- Fully on-board programmable temperature ramp
- Removable inserts, drilled to your requirements
- Rugged and hard-wearing enclosure
- 100-240 VAC switchable power
- Extremely portable and only 4.9 kg weight
- RS232 PC interface
- On-site re-calibration function
- Standard calibration certificate
