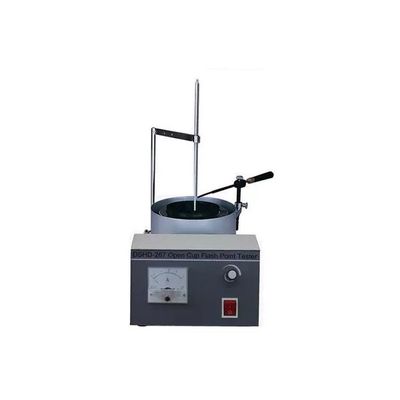

Dshing - Model DSHD-267 -Cleveland Open Cup Flash Point Tester

FromDshing Instrument Co., Ltd.

SHARE

DSHD-267 Open Cup Flash Point Tester is designed according the National Standard GB/T267 “Test Methods for Flash Point and Fire Point of P etroleum Products (Open Cup Methods)” and Industry Standard of Petrochemical SH/T0318 “Technical Requirements for Open Cup Flash Point Tester”. DSHD-267 Open Cup Flash Point Tester is applies to determine the flash point and fire point of lubricating oil and Dark petroleum products.

Most popular related searches

open cup flash point testing

open cup flash point

flash point testing

1 : Power supply : AC 220 V±10%,50Hz,Total power consumption is not more than 1100 W
2 : Outer crucible :

2.1 : Material : Carbon structural steel
2.2 : Diameter of upper opening : Φ100±5 mm
2.3 : Height : 50±5 mm
2.4 : Diameter of bottom : Φ56±2 mm

3 : Inner crucible :

3.1 : Material:Carbon structural steel : Carbon structural steel
3.2 : Diameter of upper opening : Φ64±1 mm
3.3 : Height : 47±1 mm
3.4 : Diameter of bottom : Φ38±1 mm
3.5 : Scale line : there is a line 12 mm away from the rim of upper opening and a line 18 mm away from the rim of upper opening

4 : Gas tube : the diameter of nozzle isΦ0.8~Φ1 mm. The inner surface of tube is smooth and it can adjust flame to 3 to 4 mm
5 : Heater : Heated by an electric furnace. Heating power is 1000 W and adjustable
6 : Thermometer : 0~360 °C; each scale division is 1 °C. It conforms to GB/T514
