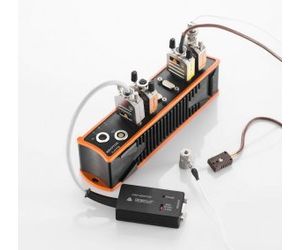

- EXTEND ANALOG INPUTS: DSI adapters are compatible with any Dewesoft amplifier with a DSUB9 analog input, independent of the product family. They will fit SIRIUS DAQ system, KRYPTON DAQ modules, MINITAURs or DEWE-43 DAQ instrument.
- PLUG-AND-PLAY WITH TEDS: All DSI adapters have TEDS chip built-in for automatic sensor detection and plug-and-play setup. Just connect the sensor to DSI adapter and DSI adapter to one of our DSUB-9 analog input and everything from scaling, units, calibration data, etc. will be configured automatically.
- COMPACT AND RUGGED: All electronics are built into small and rugged DSUB-9 aluminum housing with screw connectors to firmly screw adapters to the analog input channel.
The versatile DSI® adapters convert any Dewesoft`s DAQ system analog input with DSUB9 connector into a universal analog input that can accept everything from strain gage, IEPE/ICP, thermocouple, LVDT, RTD, current to voltage signals with up to ±200V.
DSI adapters are automatically recognized by TEDS and all settings are configured automatically inside Dewesoft X DAQ software.

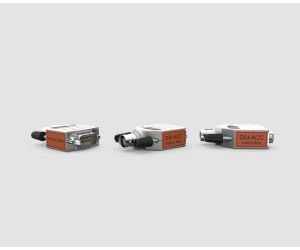

DSI adapter for IEPE (Integrated Electronics Piezo Electric) sensors like accelerometers and microphones. A sensor connected to the adapter will be automatically recognized using TEDS technology. Thee versions of DSI-ACC adapter are available:
- DSI-ACC - excitation current 4 mA, 21 V and high pass filter 0.8 Hz
- DSI-ACC-0.16Hz - excitation current 4 mA, 21 V and high pass filter 0,16 Hz
- DSI-ACC-20mA - excitation current 20 mA, 21 V and high pass filter 0.8 Hz

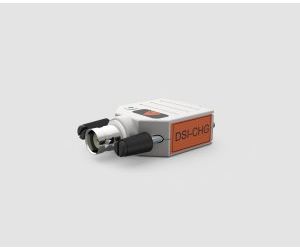

DSI-CHG adapter is intended for charge accelerometer or microphone sensors with BNC connector. The range is up to 50000 pC. AC coupled with 0.07 Hz. Max. 100 kHz bandwidth.

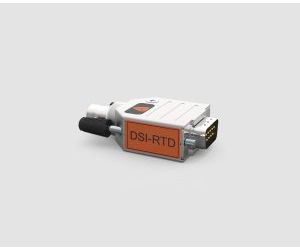

DSI-RTD is a universal adapter for RTD sensors. Two, three and four wire connection methods are supported. 5-pin Binder 710 series connector with included Binder cable connector. Supported RTD types:
- Pt100,
- Pt200,
- Pt500,
- Pt1000 and
- Pt2000.

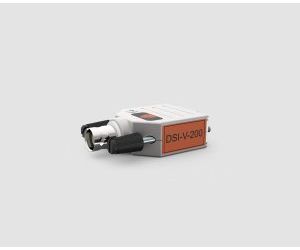

DSI-V-200 adapter will enable any DSUB9 analog input to accept ±200V voltage range, differential input via BNC connector. Bandwidth and ranges are defined by the connected amplifier.

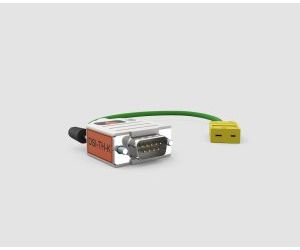

DSI-TH-x adapters are used for thermocouple sensor connection. Adapter features high accuracy cold junction reference measurement. 1 m thermocouple cable is included with mini TC connector. Supported thermocouple types:
- DSI-TH-C - thermocouple type C,
- DSI-TH-J - thermocouple type J,
- DSI-TH-K - thermocouple type K and
- DSI-TH-T - thermocouple type T.
DSI adapters for direct current measurement. We offer two versions of DSI current adapter:
- DSI-20mA - 20mA current input adapter with internal shunt 50 Ohm, 0.05% accuracy for sensors with 4 to 20 mA output.
- DSI-5A - 5A current input adapter with internal shunt 0.1 Ohm, 0.05 accuracy.

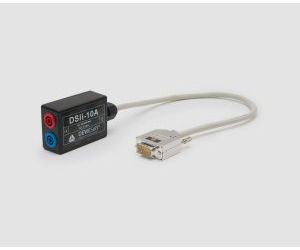

- DSIi-10A - isolated “shunt” with 10 A FS and accuracy < 0.5% FS and bananna connector.
- DSIi-20A - isolated “shunt” with 20 A FS and accuracy < 0.5% FS and bananna connector.
