DSS Tools - Model RAC-10 -1-11/16Inch Five Arm End Roller Centralizer
FromDSS Tools

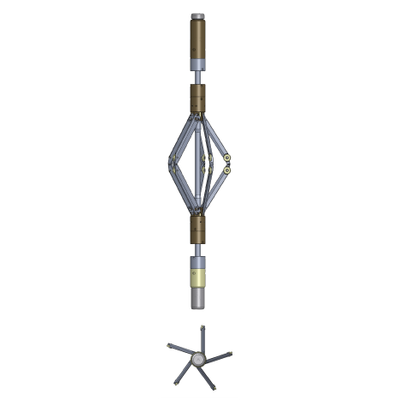

RAC-10 is a 1-11/16″, 5-Arm roller centralizer designed specifically for cased-hole operation. The 5-arm configuration lends itself to better centralization in the borehole which makes this centralizer ideal to maintain logging tools accurately centred in vertical, deviated, or fully horizontal wells. The RAC-10 can be built with standard GO, or reverse-GO (for ex. Sondex) ends. The centralizer collapses completely to 1-11/16″ diameter to allow it to go through downhole restrictions. The wheels and axles are hardened for longer service life.
Most popular related searches
- For accurate centering of logging and production tools
- Used in vertical, deviated, or horizontal wells
- Prevent tools from wearing
- Normal or harsh environment
- Rated for high-temperature and high-pressure environments
- Electrical feed-through enables the tool to be used at any point in the string
- Five sets of arms with rollers provide a radial force and ultra low friction through the full operating diameter
- Five spring loaded arms extend to fit required inner pipe diameters
- Shims can be added to springs to increase centering force
- Corrosion resistant alloys are used throughout the tool design
- Easy to service and maintain
- Minimum Casing ID :4.28 cm (1.6875 in) :
- Tool Weight :6.7 Kg (14.7 Lb)
- Force in 4.5” Casing without Shim :28.8 Kg (63.5 LBS) :
- Force in 4.5” Casing with 1 Shim :31.8 Kg (70.0 LBS)
- Maximum Casing ID :19 cm (7.5 in) :
- Maximum Deviation :90 Degrees
- Max. Temperature 204°C (400°F) :
- Max. Pressure 137.9 Mpa (20 :000 PSI) :$3
- Tool Length (make-up) :77.8 cm (30.64 in) :
- Tool Length (shipping) :85.8 cm (33.80 in)
- Arms & shaft material :Stainless steel :
- Sub material :TM3 & Aluminum Bronze
- Top End Connector :Contact Socket Go Female :
- Bottom End Connector :Contact Pin Go Male
