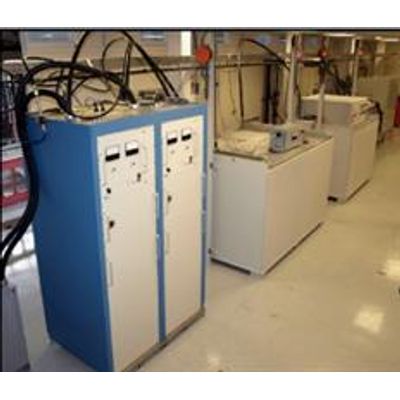

DTI PowerMod - Long Pulse Modulator Systems
DTI`s PowerMod long pulse modulator and transmitter systems deliver MW peak power levels at frequencies ranging (rom UHF to W-band. Employing direct, hybrid/transformer-coupled, and Marx-based solid-state switching topologies, PowerMod1M modulator systems offer improved performance and lifetime with:
- Fast rise and fall limes
- Outstanding pulse voltage flatness and stability
- Pulse fidelity optimized for the peak power of the preferred tube
- Integrated fault detection with full, internal protection and us response
- Compact size and weight
- High repeatability with low droop
- Rugged design for years of reliable operation
- Estimated system availability of 99.99%
All DTI systems are fully customizable to meet strict size, weight, and pulse fidelity specifications, with a range of options to meet risetime and droop requirements. Systems may be designed as turn-key solutions to transmitter needs, or integrated into existing equipment via upgrade kits. All systems are designed to fully address both FMI and safety concerns, and may be packaged in racks for laboratory use or in ruggedized environmental enclosures for more demanding applications.
