Panasonic - Model PAN9019(A) -Dual Band 2.4 GHz / 5 GHz Module

SHARE

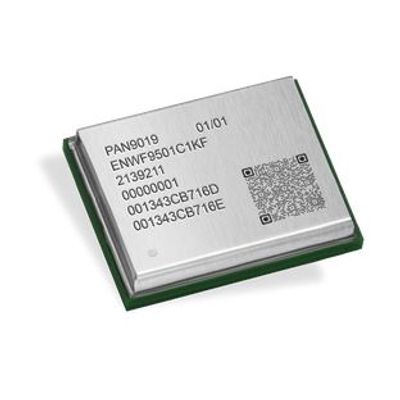

The PAN9019 is a dual band 2.4 GHz / 5 GHz 802.11 a/b/g/n/ac/ax Wi-Fi radio module with integrated Bluetooth BDR/EDR/Low Energy (LE) and optionally 802.15.4 radio, specifically designed for highly integrated and cost-effective applications.

The simultaneous and independent operation of the three standards enables very high data rates (802.11ax) and low-power operation (Bluetooth Low Energy and 802.15.4).

Integrated power management, a fast dual-core CPU, 802.11i/w security standard support, and high-speed data interfaces deliver the performance for the speed, reliability, and quality requirements of next generation products. Thus, the module reduces design, test, and calibration effort resulting in reduced time-to-market compared to discrete solutions. Integrating Wi-Fi, Bluetooth and 802.15.4 wireless connectivity allows high throughput applications for industrial devices and appliances. The combination of Wi-Fi, Bluetooth and 802.15.4 provides the highest flexibility for connectivity.
