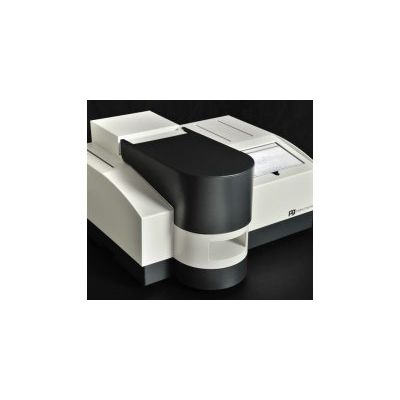

PG Instruments - Model T75/T75+ -Dual Beam UV-VIS Spectrophotometer
Dual Beam UV Visible Spectrophotometer with a wavelength range of 190 – 1100nm and fixed or variable bandpass. Instrument is supplied with an embedded Windows Touch Screen Tablet with an operating system of Windows 8 or 10. The Tablet is pre-loaded with the latest version of UVWin Software. The T75 is supplied with an 8 cell motorised cell changer as standard.
The T75 series UV Visible Spectrophotometers are dual beam having a wavelength range of 190 – 1100nm, a fixed bandpass of 2nm (T75) OR a variable Bandpass of 0.5, 1.0, 2.0 or 5nm (T75+) and a motorised 8 cell changer. The T75 series of UV-Visible Spectrometers are directly controlled by an embedded PC touch screen interface which is pre-installed with Microsoft Windows 8 or 10 operating system. Our latest UV-Win 6 software is also pre-loaded and offers many features. These include
- Three dimensional (3D) Spectrum,
- Kinetic measurements,
- Photometric analysis using multiple wavelengths,
- Method and data storage,
- Exportation of data in multiple formats and GLP administration.
- Fast wavelength scanning.
- Quantitative and qualitative analysis data.
- Optical System Dual Beam
- Spectral Band width Fixed 2.0nm (Slit)
- Scan Speed Selectable
- Working Mode Embedded Touch Screen PC operating in Microsoft Windows 8(TM )
- Software Support UV/Win Software v 6.0 (Full GLP version available on request)
- Standard Functionality Photometric, Quantitative, Spectrum Scanning with 3D data representation and Kinetic measurements.
- Wavelength Range 190 – 1100nm
- Wavelength Accuracy ± 0.3nm (Automatic Wavelength Correction)
- Wavelength Reproducibility 0.2nm
- Stray Light ≤ 0.05% T (220nm Nal, 340nm NaNo2)
- Photometric mode Transmission, Absorption and Energy
- Photometric Range -0.3 – 3.0 Abs
- Photometric Accuracy ± 0.002Abs (0-0.5A)
- ± 0.004Abs (0.5 -1.0A)
- ± 0.3%T (0-100%T)
- Photometric Reproducibility 0.001Abs (0 – 0.5A)
- 0.002Abs (0.5 – 1.0A)
- 0.15%T (0 – 100%T)
- Baseline Flatness ± 0.0015Abs (190 – 1100nm)
- Baseline Stability 0.0008Abs/Hr (500nm, 0Abs, 2nm Spectral Bandwidth 2 hr warm up)
- Photometric Noise ± 0.001Abs (500nm,0Abs, 2nm Spectral Bandwidth)
- Power Supply Switchable 120 – 230vAC 50/60Hz
