ESICO - Model 391/392 -Dual Channel Flame Photometer

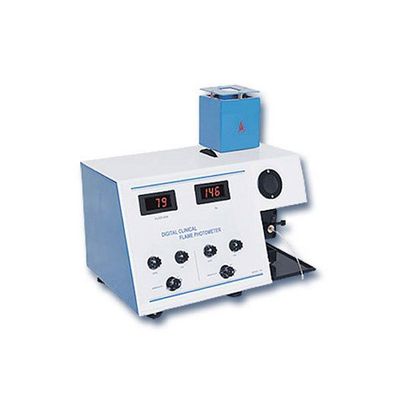

Digital Clinical Flame Photometer Model - 391 is a dual channel flamephotometer used for simultaneous observation of Sodium, Potassium in bloodserum (plasma), Urine & other type of biological fluids. The instruments aresupplied in two unit viz. Main Unit and Compressor Unit. The Main Unitcomprises of digital displays, detector, filters and nebulizer. The compressorunit supplies the compressed air to the main unit.
Air at a givenpressure is passed into the atomiser. The suction produced by it, draws thesample solution into the nebulizer and is sprayed as fine mist into the flame.The light emitted by the element at the characteristic wavelength is isolatedby the narrow band interference filters, which then falls on to the siliconphotodiode. After signal conditioning of the photodiode output, it is sent todigital converter and the results are displayed directly in ppm/meq units. Thenarrow band interference filters are mounted on a rotating disc fitted withinthe Main Unit. Appropriate filter can be selected by rotating this disc withthe thumb. The oil free compressor with regulator maintains a stable airflow.
- Simple & Easy to Operate
- Narrow Band Interference Filters
- Accurate Na, K, Ca, & Li Determination
- Dual Channel for Simultaneous Observation ofNa & K with Single Aspiration (Model 391)
- Mixing Chamber Designed For Stable Flame
- Concentric Non-Corrosive Nebulizer
- Auto Ignition
