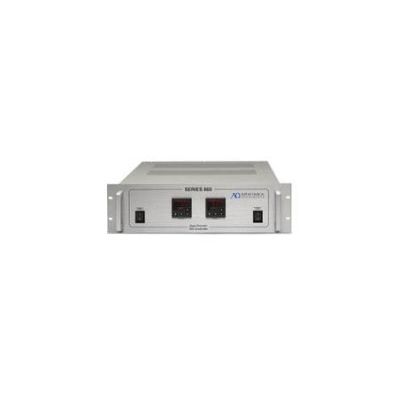

AOI - Model Series 860 -Dual-Channel Rack-Mounted Thermoelectric Cooler Controller

The Series 860 Dual Channel Rack Mounted Thermoelectric Cooler Controller, like its single channel counterpart the Series 850 Rack Mounted Thermoelectric Cooler Controller, represents a significant advance in the state-of-the-art of thermoelectric cooler (TEC) controllers. The Series 860 provides two separate TEC Controllers in one 19" rack.

It`s no secret that in the past, thermoelectric cooler controllers required a significant amount of hands-on operation to provide satisfactory performance, particularly when variations in the load and/or environmental conditions existed. The Series 860 high power TEC Controller utilizes advanced control technology in combination with auto-tuning capabilities to provide unprecedented performance at a very affordable price. Unlike many industrial controllers that have cluttered front panels, the Series 860 TEC Controller features a user-friendly front control panel design. The Series 860 TEC Controller features full proportional, integral, and derivative (PID) control that provides exceptionally tight control over a wide temperature range, as well as rapid response to changes in operating conditions. The auto-tuning feature helps to ensure maximum performance over a broad spectrum of operating conditions. Auto-tuning sets the critical PID terms to match the conditions of the application and provides fast response while minimizing overshoot and undershoot. From the user`s perspective, the need to make frequent manual adjustments has been virtually eliminated. For unique applications, users have the option to manually adjust the instrument`s control parameters as desired. RS485 Serial Communications is standard. RS232C is optional. The Series 860 Thermoelectric Cooler Controller has five standard output power ratings for each channel:

• 30 watts
• 2 A @ 15 VDC
• 60 watts
• 4 A @ 15 VDC
• 90 watts
• 6 A @ 15 VDC
• 120 watts
• 8 A @ 15 VDC
• 150 watts
• 10 A @ 15 VDC

• True Dual Channel Capability
• Complete Digital Programmability
• Exceptional Control Stability
• PI D Control
• Advanced Auto-Tuning
• Dual Digital Displays per Channel
• Optional GPIB

• Highly cost effective when two controllers are required.
• Maximum control with a user-friendly front panel interface
• Provides long-term temperature stability of < 0.002° C
• Obtain tight temperature control with quick response and fast settling time.
• Automatically adjusts the critical operating parameters for enhanced performance.
• Simultaneously displays set point and actual temperature for on-the-spot assessment.
• Enhances the instrument`s versatility.

• Control : Uni-polar or Bi-polar, constant current, PID with Auto-tuning. User can select P, or P&I control only.
• Compliance Voltage : 15 VDC
• Maximum Output Current : Up to 10 amperes per channel for a total of 300W (150W/ 2 channels) Standard Maximums per channel: 2, 4, 6, 8, or 10 amperes
• Maximum Output Power For Controller : Up to 300 watts (150W per controller) Standard maximums per channel: 30W, 60W, 90W, 120W, and 150W.
• Temperature Sensors : 100 ohm RTD, Types E, J, K, N, and T thermocouples, thermistor, AD590/AD592, and LM35/LM135/LM335 as well as external voltage and current inputs
• Range of Sensors : RTD`s thermocouples, thermistors (0 to 100 Kohm and 0 to 1 Megohm), and active sensors AD590/592, and LM35/LM135/LM335 (-50ºC to 150ºC typical) Higher and lower temperatures can be measured depending upon the sensor type. Please consu
• Long Term Stability : < 0.002ºC
• Noise and Ripple : < 1 mA
• Front Panel Displays Per Channel : Two 4-digit LED displays – red for actual temperature, and green for set-point temperature
• Display : Thermoelectric Cooler temperature and set-point temperature in ºC or ºF (user selectable) with an RTD, thermocouple, AD590/592 and LM35/135/335. For a thermistor, the display is in Kohms.
• Display Resolution : Thermistor 100 Kohm range, 0 to 99.99k or 10 ohms 1 Megohm range, 0 to 999.9k or 100 ohms For other sensors, such as RTDs, thermocouples, AD590/592, and LM35/135/335 sensors, the resolution is 0.1 ºC.
• AC Power : 115/230 VAC, Internally selectable, 47-63 Hz.
• Internal Cooling : Up to two (2) fans
• Weight : 18 pounds (8.165 kg) maximum (300 watt instrument)
• Controller Dimensions : 5.25 in. (133.35 mm) Height 19 in. (482.60 mm) Width 15.9 in. (403.86 mm) Length (3U chassis height) Note: All dimensions are without optional equipment
• I/O Connections : Thermoelectric Cooler, Temperature Sensor, AC Power, optional EIA/RS-232/485 (using MODBUS protocol) and GPIB
• Operating Temperature : 0º to 50ºC (32º – 122ºF)
• Warranty : Two years
