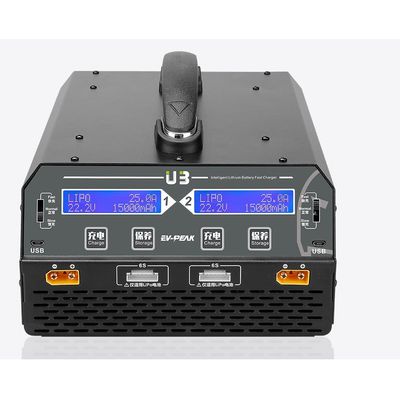

EV-PEAK - Model U3 1200W/25A -Dual Channels Intelligent Balance Charger

Dual Channel
Charging 2 Batteries at once More Convenient

1200W
Up to 1200W

Fast Charging
Super Large Battery Current at 25A

More Secure
Multiple Protection System

Dual Channel Independent Output

This drone charger supports dual channel independent output, which means you can charge 2 batteries at the same time. It also has smart charging technology that intelligently recognizes the voltage level of each battery and charges them as the order from highest to lowest voltage at max.25A.

Multi-protection System

This drone battery charger is designed to charge the battery quickly and safely. It has multiple protection systems including over-current, over-voltage, over-charge, and over-temperature protection systems that ensure your devices are charged properly.

Super Easy Operation

This battery charger is specially designed for agricultural drones, it’s easy to operate and charge your drone battery. Just press the start button to begin charging, the automatic recognition of battery information and no cumbersome settings are also two major features.

LCD Intuitive Display

The LCD screen shows charging information such as the operating mode, battery current, battery voltage, charging time, battery capacity, etc. in real time and ensures that your batteries are fully charged for optimal flight times.
Powerful Heat

Dissipation

EV-PEAK’s drone charger has a strong, lightweight aluminum alloy frame and a large-scale aluminum heat sink. Its fireproof and dissipating performance can prevent burnout from lightning strikes, overvoltage, or power surges that can damage batteries and chargers.

• Model: U3
• AC input voltage: 100-240V
• AC input voltage: 25.2V
• Charge power: Max.1450W
• Charge current: Max.25A
• Discharge power: 500Wx2
• Battery type: LiPo/LiHV
• Battery cell count: 6S
• Dimension: 286.9×200x146mm
• Weight: 3.05kg
