Shenzhen Huayuan Display Control Technique Co.,Ltd.

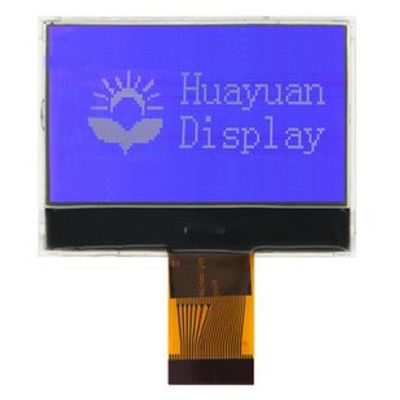

Huayuan - Model VISLCD-12864HY2001 -Dual-Display Panels
Screen size 6.0”(Diagonal). Display color White. Background color Blue. Type STN. View angle direction 6’clock. Driver mode 1/64 DUTY 1/9 BIAS.
- Backlight LED
- Controller IC UC1601
- Data Bus 8 bit
- Temperature range Operation -20 ? ---- +70 ?
- Storage -30 ? ---- +80 ?
- Number of Dots 128 x 64
- Dot size 0.39 x 0.55mm Dot pitch 0.44 x 0.60mm
- Viewing size 50.6 x 31.0mm
- Active area 46.56 x 27.68mm
- Outline dimension 44.2 x 56.6 x 7.5mm Max.
