Cole-Parmer - Model SamplePrep BM-450-8000D -Dual High-Energy Ball Mill

Typical applications include: mechanical alloying, nanomilling, slurry grinding, blending powders, mixing emulsions and mechanochemistry.

Typical samples include: rocks, minerals, sand, cement, slag, ceramics, catalyst supports, glass, pharmaceuticals, plant tissue, animal tissue, cannabis, seeds, paints, and inks.

• Dual clamps enable multiple sample processing for high-throughput applications
• Equipped with forced-air cooling and safety interlock system for operator protection
• Electronic timer is set for 100-minute range. Extended running time chip is available for entended timer range to 175 hours (10,500 minutes)
• Grinds multiple samples in the 0.2 to 10 gram range or mixes up to 50 mL of material per clamp. Multiple-sample adapters permit processing of smaller grinding vials.
• Shock mounted motor enables bench top operation.
• Steel housing protects the clamp mechanism and rugged construction ensures a long life of heavy work.
• Vibration detection switch shuts down the mill in the event of a mechanical failure.
• Start, Pause, Stop and Function buttons; programmable timer with digital display, factory-set to 150 minutes (maximum with 5 cycles).

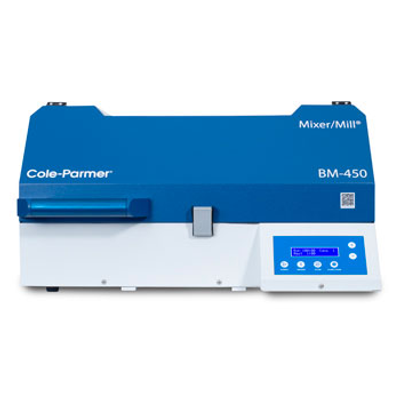

The Cole-Parmer SamplePrep BM-450 Mixer/Mill reduces hard, brittle samples from 0.2 to 10 grams to analytical fineness. The Mixer/Mill handles rocks minerals, ceramics, slags, catalyst supports, cements, and more. It is ideal for high-energy applications like mechanical alloying and mechanochemistry.

The dual clamp design of the BM-450 Mixer/Mill ensures maximum efficiency. The ability to process two samples simultaneously doubles your throughput. The dual clamps of the BM-450 Mixer/Mill not only allow twice as many samples to be ground in a given time, but they also move in symmetry, reducing vibration and extending the life of the mill’s components.

The Mixer/Mill is version and multi-purpose blending powders, creating emulsions, and homogenizing samples with ease. Various grinding vial materials are available including hardened steel, stainless steel, zirconia ceramic, silicon nitride, agate, polystyrene, methacrylate, and polycarbonate.

Each grinding vial contains a sample and one or more balls. It is then shaken in a complex motion that combines back-and-forth swings with short lateral movements in the shape of a figure-8. The clamp's motion develops strong G-forces in the vial, to pulverize the toughest rocks, slags and ceramics.

Smart, user-friendly features include a digital timer for precise control over grinding time, and the forced air cooling system keeps the motor and clamp running smoothly.

The Cole-Parmer SamplePrep BM-450 Mixer/Mill is designed for safe operation with a safety interlock system that stops the motor if the lid is opened during operation, ensuring safe operation during use. The vibration detection switch shuts down the mill in the event of a mechanical failure, and the forced air cooling fan prevents overheating. The shock-mounted electric motor cuts back vibration and prolongs motor life, and the steel housing and rugged construction ensure a long life of heavy work.

Powerful and efficient, the Cole-Parmer SamplePrep BM-450 -Mixer/Mill reduces processing time for high-throughput labs, minimized sample contamination with a variety of vial materials to choose from, and with its durable construction, ensures long-term reliable performance.

Operation is simple: load the sample and grinding media into the vial, secure the vial in the dual-clamp system, set the desired run time and speed on the digital interface, press start, and let the Mixer/Mill do the work.

• Model Number: BM-450
• Type of Mill: High-energy ball mill
• Grinding Container: Canister type vial with one of more balls
• Motor: 1/3 HP, 1725 rpm (115 V), 1425 rpm (230 V)
• Fuse: 115 V/60 Hz version, two 10-amp slow-blow fuses in inlet mode
• 230 V/50 Hz version, two 5-amp slow-blow fuses in inlet mode
• Voltage: 115 V/60 Hz or 230 V/50 Hz
• Power Cord: 115 V/60 Hz model: 3-prong grounded plug supplied
• 230 V/50 Hz model: 2-prong European plug supplied
• Dimensions: 64 x 54 x 36 cm (25 x 21 x 14 in.)
• Net Weight: 42 kg (92 lb) without vials
• CE Approved: Yes
