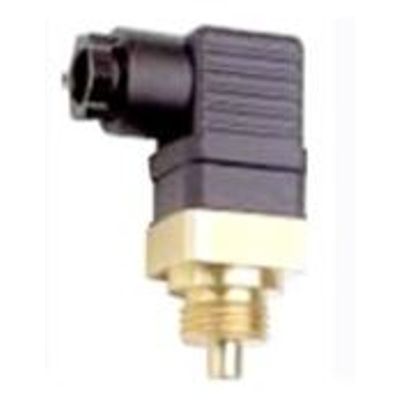

A-Yite - Model GE-379 -Dual Metal Temperature Switch
FromZHOU ENSI LTD
GE-379 bimetal temperature switch could be brass body or stainless steel body, with an internal sensing cavity. GE-379 temperature controller adopt dual metal sheets. when temperature action set point is reached, result from thermal expansion, the expanded metal sheet activates the micro switch. Micro switch have UL CE certification.
Most popular related searches
- Temperature setpoint: 30C, 40C, 50C, 60C, 70C, 80C, 90C, 100C, 110C, 120CStainless Steel Temperature Controller
- Accuracy: FS -/+3 C
- Max Pressure: 10 bar
- Max Temperature: 130 C
- Hysteresis: 15 C
- Output: NO or NC, Gold-plated contacts
- Max Loading: 16A 220V AC
- Electrical Connection: DIN Hirschmann
- Wetted parts material: GE-379A stainless steel or GE-379B brass
- Connecting thread: G1/4, G3/8, G1/2", M14x1.5, M22x1.5, NPT1/4, NPT3/8
- Protection class: IP65
