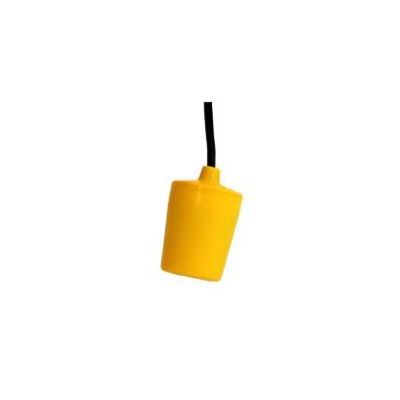

APG - Model Series TLS -Dual Point Cable Suspended Float Switch
Series TLS Cable Float Switches are dual-point switches that provide built-in hysteresis for better pump control. The switch operating levels are easily adjustable based on the cable weight location, and the floats are especially suited for use in waste water and sewage applications with low specific gravity.
Built-in Hysteresis
With switch action at a high and a low level, the TLS provides level control that won`t wear out your pumps with frequent on/off cycles.
Wide Angle Action
The 28° switching differential and adjustable cable weight of the TLS provide customizable High and Low level settings.
Versatile Applications
Polypropylene housing, PVC jacketed cable, and up to 60 ft of cable allow the TLS to go a lot of places other low-cost float switches can`t.
Series TLS Cable Float Switches are dual-point switches that provide built-in hysteresis for better pump control.
- Switch Points:1 NO/NC
- Switch Type:Cable Suspended/Tilt
- Performance
- Control Differential : 28° ±2°
- Programming : NA
- Electrical
- Voltage : 125/250 VAC, 50/60 Hz
- Current Rating : 10A / 250 VAC
- Physical
- Housing : Polypropylene
- Cable : 2C 1.25mm2 (~16AWG), PVC jacket
- Cable Lengths : 6m (20 ft.) Standard
- Other lengths available: 12m (40 ft.), 18m (60 ft.)
- Approvals : NA
- Connectivity
- Switch Output : NO or NC
- Environmental
- Max. Liquid Temperature : 140° F (60° C)
