KDS Gemini - Model 88 -Dual Rate Syringe Pumps
FromKD Scientific

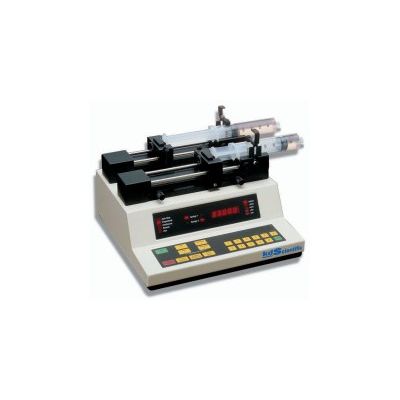

The NEW KDS Gemini 88. This unique pump is really two pumps in one. Each side of the Gemini 88 has its own syringe rack, motor and leadscrew. The pump can infuse simultaneously at different rates, or infuse with one syringe and withdraw with the other. When combined with a valve box it provides continuous delivery.
Most popular related searches
The Gemini Syringe Pump offers continuous infusion or withdrawal, 24 hours a day, 365 days a year with the accuracy and low flow of a KD Scientific syringe pump.
- Continuous delivery 24/7
- RS232 computer interface
- Daisy chain up to 100 pumps
- Wide variety of syringes from 0.5ul – 140ml
- High or low pressure
- CE certification
- TTL interface
- 57 lbs of linear force
- 12 month warranty
- #of Syringes: 2
- Accuracy: 0.35%
- Average Linear Force: 57 lbs
- Communications: RS-232, TTL
- Communications Level: 2
- Depth English: 11.25 in
- Depth Metric: 28.6 cm
- Display: LED, 5 digit, numeric
- Flow Rate Maximum: 106.6 ml/min
- Flow Rate Minimum: 0.0004 μl/hr
- Height English: 6 in.
- Height Metric: 15.2 cm
- Input Power Connection: 36 VDC 1.4 Amps
- Motor: 2 motors, 1/2 to 1/4 microstepping,
- microprocessor controlled, 0.9° step angle
- Motor Stepping 1: 1,600 at 1/2 stepping; 3,200 at 1/4 stepping Revolution of
- Lead Screw
- Net Weight English: 15lb
- Net Weight Metric: 6.8 kg
- Non Volatile Memory: Storage of all settings
- Pusher Travel Rate
- Maximum: 95.25 mm/min
- Pusher Travel Rate
- Minimum: 0.726699 μm/min
- RS-232: RJ11-4 Connector
- Step Rate Maximum: 416.7 μsec/step
- Step Rate Minimum: 27.3 sec/step
- Step Resolution: 0.33 μm/step
- Syringe Size Maximum: 140 ml
- Syringe Size Minimum: 0.5 μl
- TTL: 9-pin connector
- Voltage Range: Selectable, 95 to 130 VAC, 60 Hz or 220 to 260 VAC, 50 Hz
- Width English: 12.5 in
- Width Metric: 31.1 cm
