Brentwood Recycling Systems

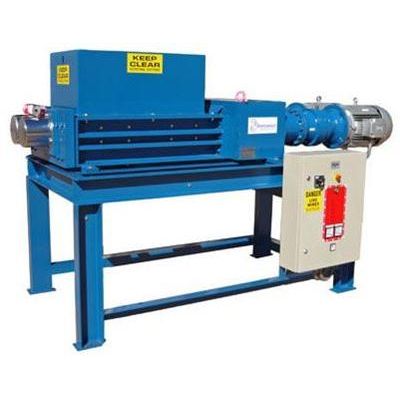

Brentwood - Model AZ50HD -Dual Shaft Industrial Shredder System
Brentwood’s AZ50HD is a powerful and robust dual shaft shredder designed for the toughest applications. The AZ50HD is our most popular and versatile shredder. Originally developed to eliminate shaft breakages common on smaller machines in tough applications such as paper and tyre shredding, the AZ50HD has proven itself to be a reliable and robust performer – we have not broken an AZ50HD shaft since it was introduced over 14 years ago. This unit can be configured to shred most materials including paper, tyres, oil filters, steel drums, medical waste, and the list goes on..If you have a shredding application, then the AZ50HD is up to the task.
Most popular related searches
double shaft shredder
dual shaft industrial shredder
industrial shredder system
shredder
industrial shredders
shredder design
industrial shredder
shredding system
tire shredding
medical waste
- 2 x 18.5kw coupled drives for maximum cutting force at each cutter
- High torque/low speed
- 120mm hexagonal shaft for superior strength
- Planetary reduction gearboxes for exceptional duty cycle and low noise
- High surface hardness/high core strength repairable alloy cutters
- DOL, Smart Start, and Eco Vari-Drive control options with auto reverse and overload protection.
- Wide range of cutter widths and hook types to suit different materials and output size requirements
- Wide range of infeed and discharge options
- Australian made for Australian conditions
- Power: 37 kW
- Full Load Current: 66 amps
- DOL Starting Current: 536 amps
- Shaft Centres: 229 mm
- Shaft Diameter: 120 mm
- Standard Cutting Chamber Lengths: 1060/1180 mm
- Cutting Chamber Width: 599 mm
- Machine Length: 3127 mm
- Machine Width: 1048 mm
- Machine Height: 425 mm
- Weight: 2300 kgs
- Cutter Width Options: 20/31/47/62 mm
