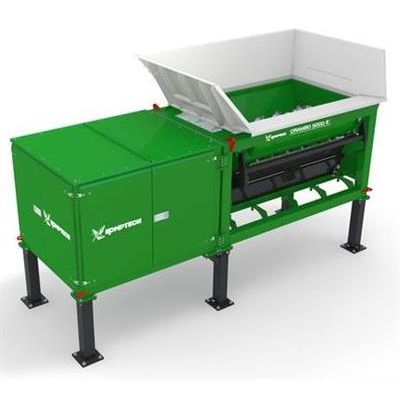

Komptech Crambo Stationary - Dual-Shaft Shredder for Wood and Green Waste
The stationary Crambo dual-shaft shredder shreds all types of wood and green waste, to a set particle size. Slow-running screws with shredding tools minimize fine particle and noise/dust emissions, and build up resistance to contamination. The particle size is adjustable by simply exchanging screen baskets. A new engine compartment with large doors offers perfect access to all drive components. In addition, the separation of the drive unit from the shredding unit is provided as an option. The advantages: Better protection of drive unit and space-saving integration into the process cycle. Performance: Electric motor with 160-320 kW. Hydraulic drum drive. Drive and shredding unit combined or separated.
Flexible
Large feed area with aggressive feed with counter-rotating shredding drums
Komptech Plus
Hydraulic drive with load-dependent speed control
User Friendly
Slow-running operation minimises noise and dust emissions
Your Choice
Variable particle sizes through simple screen basket change
Everything Possible
The Crambo is capable of shredding of wood and green waste in all of its various guises. In the generously dimensioned shredding area, two counterrotating shafts measuring 2820mm in length and equipped with cutting tools provide active feed – everything is shredded to a set particle size.
Coarse or Fine
The Crambo enables easy adjustment of the degree of shredding. This is achieved by simply exchanging the screen basket (hole size 80-300mm), instantly offering a system with the required shredding action. This is a key benefit since it allows the ideal particle size and type for subsequent processing to be generated.
Hydraulic Drive: Standard or Isolated Design
Besides the standard stationary frame, isolation of the drive unit from the shredding unit is provided as an option for the hydraulic version. The advantages: Better protection of drive unit (less dust, better cooling) and space-saving integration into the process cycle.
Special Applications
The innovative shredding concept provides a wide range of possibilities. Established applications are the shredding of bio-waste for composting, the shredding of market waste and food/kitchen waste for a anaerobic digestion or the pre-shreddding of roof shingles.
