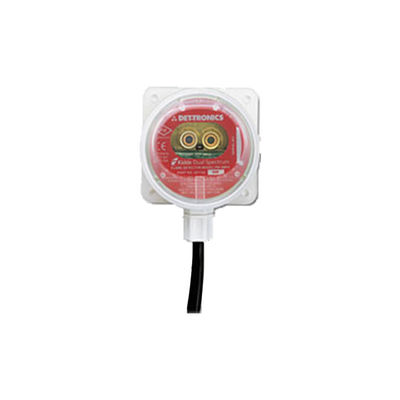

Det-Tronics - Model PM-5MPX -Dual Spectrum IR Flame Detector
Flame detection in semiconductor fabrication settings presents a unique set of challenges the typical IR detector struggles to overcome. The caustic environments and aggressive products of combustion common to these high-value manufacturing processes require the best detection available. The PM-5MPX from Det-Tronics delivers.
Most popular related searches
IR flame detector
flame detection
hazardous area
intrinsic safety
fire detection
flame detection system
safety hazard
- Built-in rugged mounting plate
- Typical alarm response of <0.5 seconds
- Explosion response capability of 25 milliseconds
- A good choice for use in CNC machining applications
- Intrinsic safety and non-incendive hazardous location approved
- Cone of Vision 110 degrees horizontal and vertical, with the highest detector sensitivity along the central axis
- Relays: 100 milliamps maximum at 30 Vdc
- Non-latching fire relay contacts close for 5 to 15 seconds
- Polypropylene enclosure shows no degradation to housing or wire jacket observed after exposure to Cyclohexanone, NMP, HMDS, Photo Resist, Developer, Acetone, Isopropyl Alcohol, MEK, or Methanol at 60°C
- FM 3260 fire detection performance approved
