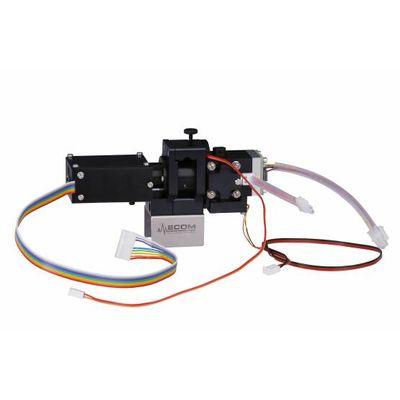

ECOM spol. s r.o. - Model BABY18FIX -Dual UV Detector
Dual UV detector version measure at two fix wavelength which is adjusted in production according to customer order in range of 200 – 600 nm. More wavelengths or scan are used in liquid chromatography to verify purity of analyzed samples or in situations when some peaks absorb on different wavelengths. The unit is supplied with PCB board of dimensions 100 x 160 mm (3.94 x 6.30 in) . It powers the lamps and control the unit. Thanks a new miniature deuterium lamp has the unit surprisingly small dimensions.
Most popular related searches
flow cell
noise testing
liquid chromatography
UV-VIS
flow monitoring
UV-VIS detector
chromatography
PCB
ore analyzer
AMY17 board allows to have optional extension modules (for additional cost):
- Analog outputs board
- LAN and USB board
- Display with keyboard
- Leakage sensor
Most important features of BABY18DAD detectors:
- small dimensions
- built-in lamp working hours counter
- easy replacement of flow cell
- measuring at more wavelengths simultaneously
- sophisticated diagnostic software
- Wavelength range 200-600 nm
- Number of channels (Signals) Two fix wavelength in range of 200 – 600nm
- Number of CCD elements 256
- Accuracy of adjustment ± 1 nm /±0.5 nm
- Typical spectral half-width 8 nm
- Reproducibility ±0.5 nm
- Light source Deuterium lamp
- Noise (Test cell, 254nm, TC 2s, 10 Hz) ± 5 x 10-5 AU
- Drift (Test cell, 254nm) 1 x 10-3 AU/h
- Time constant 0.5 s, 0.75 s, 1.0 s, 2.0 s, 4.0 s, 8.0 s, 16.0 s, 0.2 s, 0.1 s
- Wetted materials FEP; fused silica, stainless steel
- Maximal flow rate 500 or 3 000 ml/min depending on the cell
- Communication RS232; optionally USB and LAN
- Power supply 24 -36 V DC
- Power input 48 W
- Dimensions W x H x D 131 x 167 x 386 mm (5.15 x 6.57 x 15.20 in)
- Weight 3.20 kg (7.06 lb)
- Optical cables no
