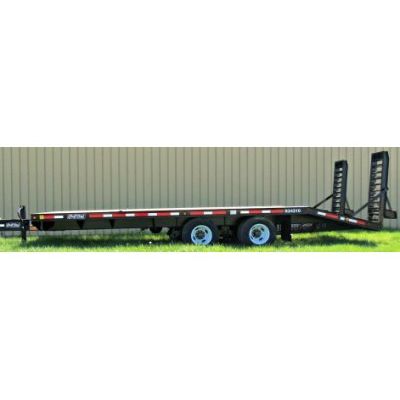

RediHaul - Model R24210TBE-102 -Dual Wheel Tiltbed Trailers
Main Frame: 10` x 15# I-Beam, high strength structural steel. Frame Bedside: 8` x 11.5# Channel, high strength structural steel.Bed Crossmembers: 5` x 6.7# Channel, high strength structural steel pierced through tilt bed stringer (8` x 13# I-Beam, high strength structural Steel).
Most popular related searches
- Tongue: Formed part of main frame with chain box in tongue
- Axles: 2 - 10,000# Heavy Duty Dual Wheel Axle; 5" O.D. Beam, ,25 wall; inner bearing, 2.625 I.D.; outer bearing, 2.25 I.D.
- Brakes: 12 1/4" x 4" Electric Brakes on all wheels
- Dexter Suspension: Dexter Slipper Spring with equalizer, 5 leaf spring, 3" wide per axle per side, 5,000# per side per axle
- Hutch Suspension: Hutch 9,700# Series Slipper Spring with equalizer, 3 leaf spring, 3" wide per axle per side, 11,200# per side per axle
- Tires: 8 - ST235/80R x 16 "E" 2,780# each @ 80 PSI
- Wheels: 8 - 6 x 16 Dual wheel, 4.75 pilot, 8 on 6 1/2" bolt circle 3,000# each
- Decking: 2" Nominal Oak Deck
- Deck Dimensions: 24` Long (20` Flat Tilt deck + 4` Stationary) x 8` 6" Wide
- Deck Height with Dexter: 34"
- Deck Height with Hutch: 35 1/2"
- Load Angle: 15 Degrees
- Coupler: 3" Adjustable Height Pintle Eye
- Landing Jack: 12,000# Binkley Single Speed Drop Leg
- Ramps: 2 - Heavy Duty - 12" Long x 32" Wide
- Wiring: Sealed modular wiring
- Lights: All D.O.T. required; sealed and shock mounted LED lights
- Extras: Anti-sail mud flaps, 3/8 " x 36" Grade 70 safety chains with slip hook & safety latches, dual tilt cushion damper cylinders, automatic platform latch
- G.V.W.R.: 25,000#
- Capacity: 18,600#
- 8` 6" Wide Deck
- 3" Adjustable Height Pintle Eye Hitch
- 2" Nominal Oak Deck
- 12,000# Drop Leg Landing Jack
- 6- Tie Down Rings ("D" Rings) 3 per side
- Oil Bath Hubs
- 15 DEG Tilt Angle
- Automatic Platform Latch
- Safety Chains with Snap Hooks
- Sealed and Shock Mounted LED Lights
- Sealed Modular Wiring System
- Safety Breakaway System with Battery
- Chain Box in Tongue
- Mud Flaps
- Dual Tilt Cushion Damper Cylinders
- Gooseneck Hitch
- Lockable tool box cover
- Additional "D" Rings
- 4" High Side Guides on Rear 10` of Deck
- ABS on 2nd Axle
- 25,000# 2 Speed Drop Leg Jack (in lieu of 12,000# single speed)
- Registration Holder
- Spare Tire
- Spare Tire Mounting Bracket
- Paint Color and Undercoat
- Gravel Guard Protection
- Self Cleaning Rear 5` Tilt Deck
- 6` Front Stationary Deck
- Rumber Deck
