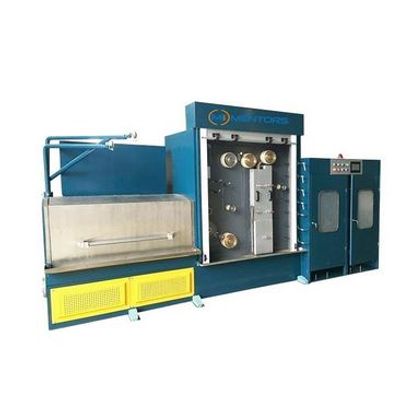

Mentors - Model SY-DT24.2A -Dual Wire Fine Wire Drawing Machine
Dual Wire Fine Wire Drawing Machine is used for drawing and annealing copper wire with a wire range of 0.12-0.35mm, followed by single or dual spool take-up. Finished wire is wound by 300 steel bobbin or similar size plastic bobbin.
Most popular related searches
- Max.DiesQty: 24
- Outlet wire size: 0.12-0.35mm
- Max speed: 1800m/min
- Dual Inverter Control
- Machine type: SY-DT24.2A
- Inverter control: Dual inverter control
- Drawing dies No./max.: 24-2
- Inlet diameter: 0 0.5-1.0mm
- Out diameter: 00.12-0.35mm
- Drawing line speed: 1800mpnVmax
- Slip ratio of m/c: 13%
- Fix speed capstan slip ratio: 8%
- Frame: Welded by steel plate
- Capstan: Ceramic plasma capstan
- Main motor: 18.5 kw
- Spooler motor: 4kw
- Annealing voltage: DC0-60V
- Annealing current: DC 300A
- Protection type: Steam or nitrogen
- Spool bobbin size: 0 300mm or customization
- Transmission type: By timing belts
- Spooler control: PID Synchronous spooler
- Detecting device: Weight balance by swing arm
- Tension control: Weight balance type
- Lubrication type: Spray type
- Brake: Magnetic brake
- Power source: 380v 50/60 HZ or customization
- Double drivers ensure precise tension and a minimum ratio of the wire.
- Easy string-up and maintenance operations.
- Energy saving and excellent wire surface quality.
- Best choice for diversified products manufacturer.
- Two wires, energy-saving, and space-saving high efficiency.
