Duct-Scan - Model Micro -Duct Camera
DRAIN CAMERA VIPER portable drain camera is a cost-effective set designed to deliver high-quality inspections of sewers, building ducts/piping, wells, chimneys, and power plants.

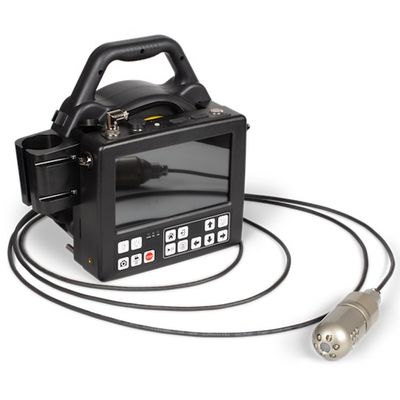

The DUCT-SCAN MICRO is a professional duct inspection device with a remotely rotatable HD camera head attached to a dropdown cable to examine air channels, chimneys, and flues thoroughly.
The whole system is fully portable and easy to carry around and operate.
- Non-expensive Commercial Grade Duct Camera
- Easy to carry, easy to operate
- 20 meters (65 feet) Incorporated dropdown cable
- 1.77" dual-view, rotating HD camera head as standard
- The camera is water/dust ingress protected.
- Super Bright LED illumination to see objects feet away.
- 8" HD IPS LCD Color Display
- Image /Video file capture
- Up to 4Hrs of Portable Use on One Charge
The DUCT-SCAN MICRO can be supplied with either dual-view, or pan-and-tilt camera heads. The Dual View head has built-in front and rotatable side cameras. The Pan-and-Tilt head will pan side to side at least 90 degrees in each direction, and you can also spin the camera head in a full 360-degrees circle enabling you to survey the entire surface of the inspection area fully.

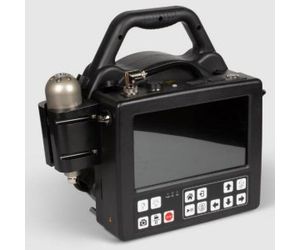

The control box is weatherproof and has a protective sun shield over an 8.0" color HD IPS LSD monitor. Pre-installed options include video and image capture, a microphone, and a rechargeable battery for portable use. Switching between the camera signals is controlled via a simple dial, and the image can also be switched during live video recording.
Files are captured to a USB memory stick, and captured images and videos can be downloaded directly to a computer or laptop. The DUCT-SCAN MICRO inspection camera operates on a Li-Ion rechargeable battery suitable for up to 4 hours of the inspection.
The system comes with a 65 feet (20 meters) flexible dropdown cable that is stored inside the unit`s body.
DUCT-SCAN MICRO duct camera has been designed to be robust and easy to use, featuring the latest imaging technology to make inspections effortless and thorough, and they come with a 1-year manufacturer`s warranty.
- 8`` HD IPS LCD Color Display
- 1280x720 Resolution
- Image / Video capture
- On-screen Footage Counter
Full Specifications
- Size of the screen: 8`` HD IPS LCD
- Display Resolution: 1280x720, 16:9
- Image / Video capture
- USB memory stick to capture files
- Rechargeable Li-ion battery pack
- Working time: 4 Hrs (approx)
- Control Unit
- User`s manual
- Skid
- Battery Charger
- USB Flash drive
- Camera Head
