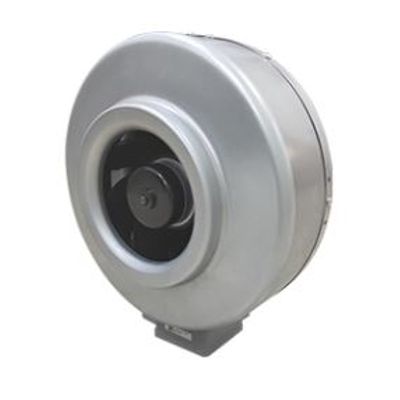

Fans-tech - Model DF250F2-055-A00 -Duct Fan
Material：ABS Galvanized sheet. Protection level：IP44. Insulation level：F. Working temperature：-25℃/+60℃. Safeguard：Recoverable thermal protection.
Model & Category
- Product model: DF250F2-055-A00
- Product category: Duct fans
Basic parameters
- Voltage type: 1-phase AC
- Voltage（V）: 230
- Frequency（Hz）: 50/60
- Capacitance（μF）: -
- Current（A）: 0.31/0.57/0.92
- Power（W）: 34.3/73/122
- Speed（RPM）: 1810/2440/2900
- Diameter Φ（mm）: 250
- Airflow（m³/h）: 630/870/1050
- Noise（dB）: 59/66/70
