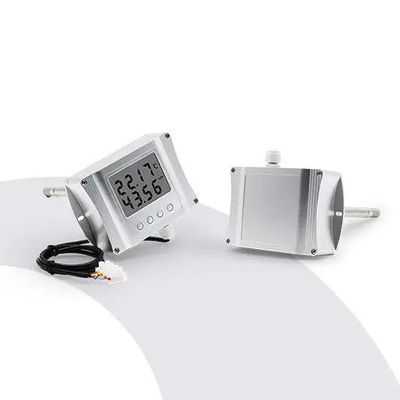

DabecoModel DB510-F1T -Duct Humidity and Temperature Sensor for HVAC and Climate Chamber

SHARE
The sturdy and reliable DB510-F1T sensor is designed for measuring air relative humidity and temperature in HVAC and climate chambers. Dew point can also be calculated. Its high accuracy, excellent measurement stability and reliable operation make it an ideal choice for applications where accuracy is of the utmost importance.
Most popular related searches

Technical Parameters



Measurement Range
-Humidity: 0 ~ 100 %RH;

-Temperature: - 40 ~ +120 °C (- 40 ~ +248 °F)


Accuracy at 0 ~ 90 %RH & +25 °C(+77 °F)
-Humidity: ± 2.0 %RH;

-Temperature: ± 0.2 °C (31.64 ~ 32.36 °F)


Outputs
-Analog 4 - 20 mA / Digital RS485, Standard Modbus RTU

Response Time
-Humidity: ≤8s, Temperature: >2s

Power Supply Input
-9 ~36 VDC


Power Consumption
-Lowest 1.2kw


Display
-dual line LCD / Without Optional


Stem Length
-400 mm standard, customizable
