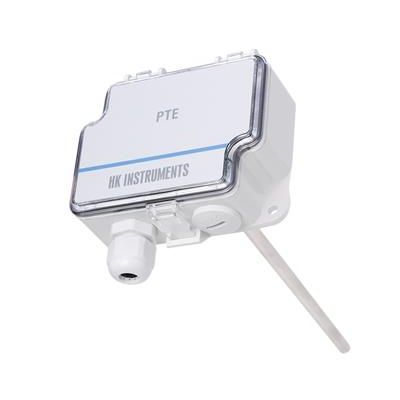

HK Instruments - Model PTE-Duct -Duct Temperature Sensor for HVAC Applications
FromProdual UK Ltd.
PTE-Duct is a passive temperature sensor engineered for HVAC applications. PTE-Duct is used to sense air temperature inside a ventilation duct. The temperature sensor is housed inside a stainless steel tube that protects it from the environment and condensation, ensuring long service life.
Most popular related searches
PTE-Duct is available with the following sensor types:
- NTC10k
- NTC20k
- Pt1000
- Ni1000
- Ni1000-LG
- Accuracy:NTC10k ± 0.25 °C @ 25 °C, NTC20k ± 0.25 °C @ 25 °C, Pt1000 ± 0.3 °C @ 0 °C, Ni1000 ± 0.4 °C @ 0 °C, Ni1000-LG ± 0.4 °C @ 0 °C
- Operating temperature:-50 … +100 °C
- Sensor tube length:190 mm
- Sensor tube outer diameter:7 mm
- Protection class:IP54
