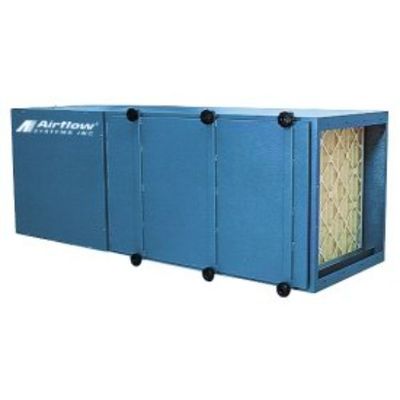

Lev-Co- - Model F90 - 2800 CFM -10-001 -Ducted Air Cleaner
F90 models collect dust, smoke, oil mist, oil smoke, and other atmospheric pollutants in industrial plants, shops, schools, and factories with high efficiency,2 or 3 stage filtration. This model features a flow rate of2800 CFM.
- Largest filtration, smallest dimensions
- Multiple installation configuration options, allowing for installation in congested areas
The F-90 ducted Industrial Air Cleaner comes standard with (1) 4” deep 30% pleated pre-filter, (1) 65% bag filter, 96ft² of media, and a 1.5 HP TEFC motor 208-230/460/575/3/60Hz. The fan is included inside the unit.
These units are complete, packaged air filter units that can easily be attached to ductwork and pickup hoses for at-the-source collection of pollutants.
There are multiple filter configurations available featuring washable and/or disposable filters. The unit can be upgraded with different filter and fan packages to suit various applications and contaminants.
Main Options:
- Fan and Motor Upgrades
- Filter Options
- Pressure Gauges
- Variable Frequency Drives
- 16 Ga. steel cabinet with powder-coat finish
- Ultra-Seal® filter sealing system
- Side access door to filters
- Internal belt drive
- Ball bearing 10’ x 10’ blower with adjustable speed motor pulley
- 4-way adjustable airfoil blade exhaust grille
- Motor wired to external junction box; unit wired for 208V unless otherwise specified. (Motor starter not included.)
- Main System Part #: F90
- Height x Width x Depth: 31"H x 28"W x 71"D
- Weight: 370 lbs
- Capacities to 2800CFM:Handles toughest industrial applications
- Non-electrostatic Operation:High reliability, low maintenance.
- Ultra-Seal® Filter Mounting:Eliminates contaminant bypass of filters.
- High-Efficiency Filter Media:Provides maximum effectiveness; low air-to-cloth ratio extends cycles between filter changes; filter changes easily without tools.
- Prewired to Junction Box:For fast, easy installation.
Top 5 contaminants/processes/applications:
- Oil Mist
- Wood Dust
- Oil Smoke
- Plastic Fumes
- Cannabis Dust
Don`t see your contaminants? Give us a call! 1-888-862-5356 or Click our instant chatbox.
IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
F90
2800 CFM industrial air cleaner with (1) 4” deep 30" pleated prefilter, (1) 65% bag filter (96ft²) and a 1.5 HP TEFC motor, 460/3/60Hz
- Filter Options (when ordering with main unit)
- Replacement Filters
- Sound Attenuation
- Preventative Maintenance Pressure Gauges (when ordering main unit)
- Variable Frequency Drives
